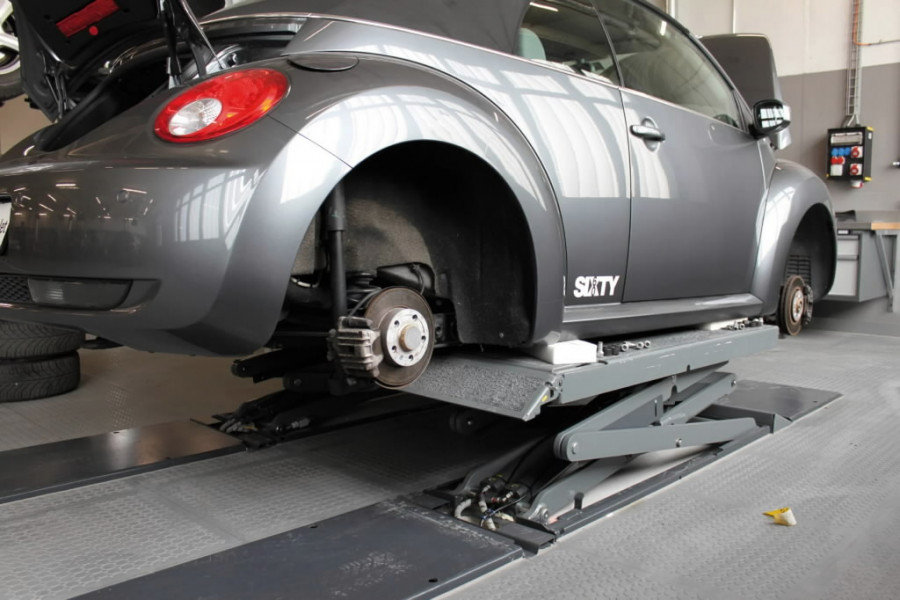

Technical specificationsThe twin scissors lift TWIN F IV 3.5 A, for above-floor installation, lifts vehicles of up to 3.5 t. Thanks to its innovative cylinder lift-out support, it reaches its full lifting power at even the lowest lifting height. Low-noise raising and lowering with speed delay is also possible in the lowest position. The continuously adjustable support plate length ensures comfortable operation, subsequent pushing of the vehicle is not required.
Technical data:
CE load capacity: 3500 kg
Max. lifting height: 1920 mm
Lifting / lowering time, load-dependent approx. 35 / 35 s
Drive-over height: 105 mm
Width of support plates: 605 mm
Length of support plates: 1550 - 2100 mm
Total width (recommended): 1955 mm
Drive power: 2.2 kW
Operating pressure: 270 bar
Power supply: 3/N/PE 400 V 50 Hz
gG fuse: 16 A
Weight including packaging approx. 900 kg
Packaging dimensions (L x W x H): 2100 x 760 x 710 mm
Hydraulic oil volume (not included) approx. 9 l
Technical data:
CE load capacity: 3500 kg
Max. lifting height: 1920 mm
Lifting / lowering time, load-dependent approx. 35 / 35 s
Drive-over height: 105 mm
Width of support plates: 605 mm
Length of support plates: 1550 - 2100 mm
Total width (recommended): 1955 mm
Drive power: 2.2 kW
Operating pressure: 270 bar
Power supply: 3/N/PE 400 V 50 Hz
gG fuse: 16 A
Weight including packaging approx. 900 kg
Packaging dimensions (L x W x H): 2100 x 760 x 710 mm
Hydraulic oil volume (not included) approx. 9 l
+ Show more
Twin scissors lift TWIN F IV 3.5 A, MAHA
