Sliding mitre saw HM305SL, Scheppach

305 MM SLIDING CROSS-CUT MITRE SAW WITH SLIDING PULLOUT FUNCTION
• High-performance 2000 Watt motor with soft start function
• Saw head can be angled 48° to either side for professional results

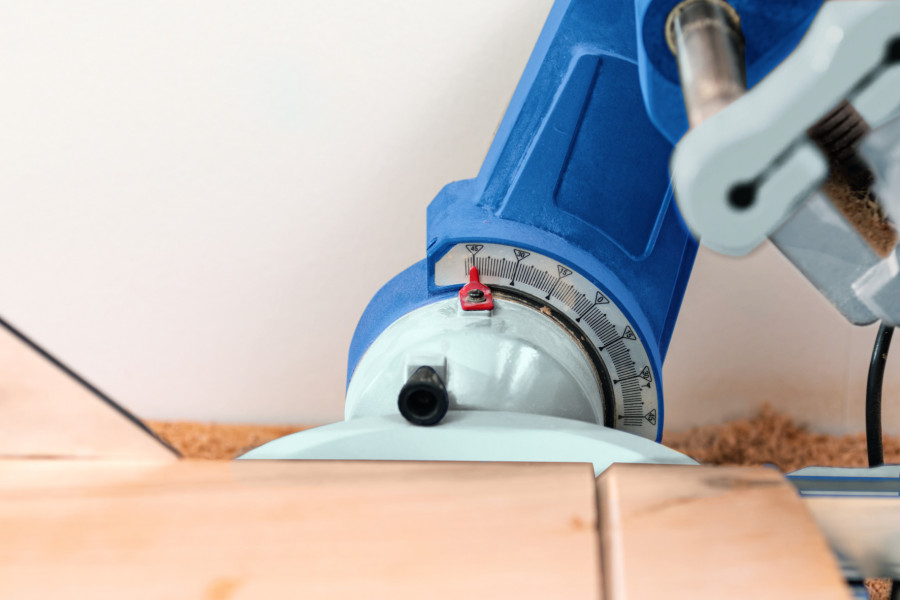

• Work table can be adjusted from -50° to +50°

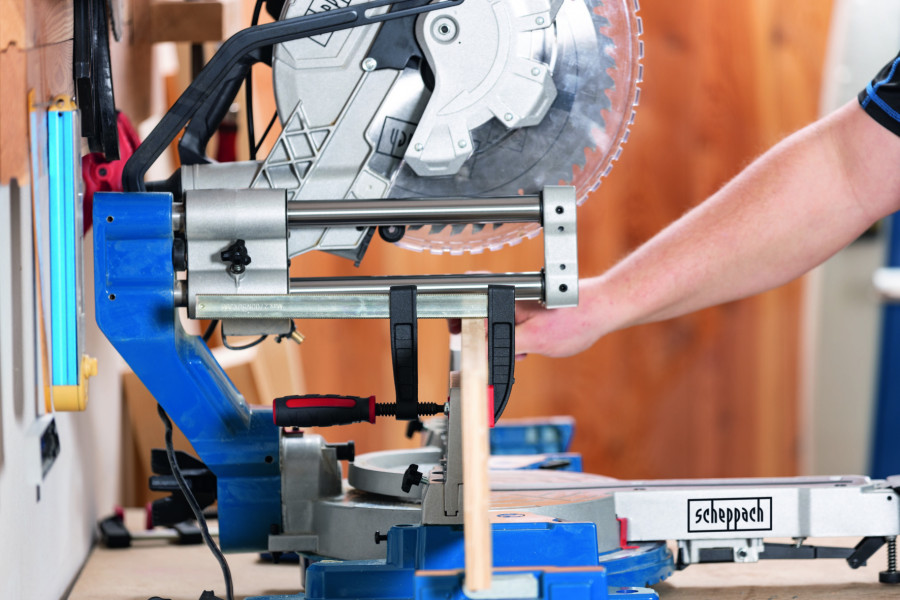

• Sliding pullout function with parallel guides requires no space behind the unit

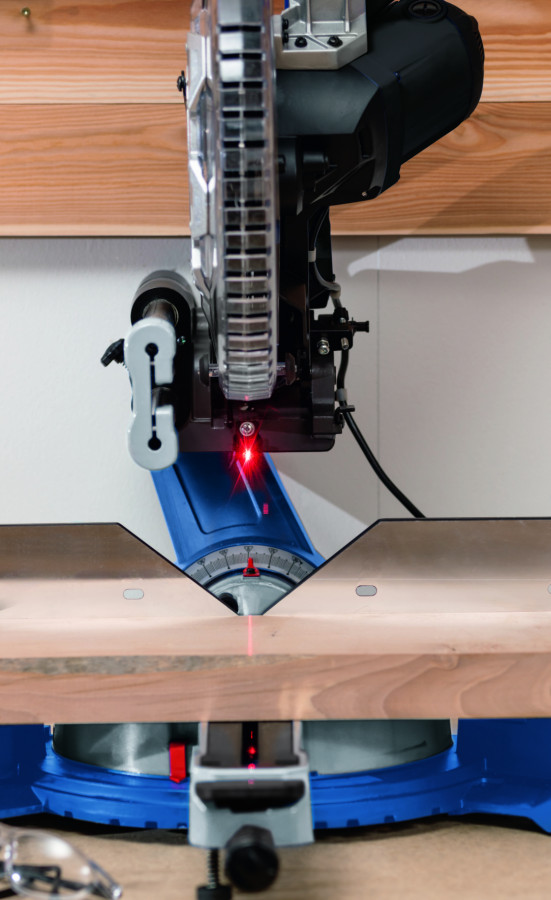

• Built-in laser for precise cutting along the indicated cutting edge
• 305 mm carbide saw blade for consistent and precise cutting results
• High cutting capacity of 340 mm width and 105 mm height
• Thanks to the special cutting height extension, a height of 180 mm at a maximum width of 20 mm can be sawn – ideal for skirting or tongueand- groove boards
• Saw blade fully enclosed by guard for maximum work safety
• Includes carbide saw blade with 48 teeth

Blade Ø 305 mm
Motor speed 5000 rpm
Bevel type 2 x 48°
Mitre capacity -50° left till +50° right
Cross cut at 90° / 90° 340 x 105 mm
Mitre cut at 90° / 45° 340 x 35 mm (r.)
340 x 60 mm (l.)
Bevel cut at 45° / 90° 240 x 105 mm
Compound cut at 45° / 45° 240 x 60 mm (r.)
240 x 60 mm (l.)
Mitre slots 45-31.6-22.5-0-22.5-31.6-45°
Motor 220 – 240 V~ / 50 Hz
Engine power 2000 W
