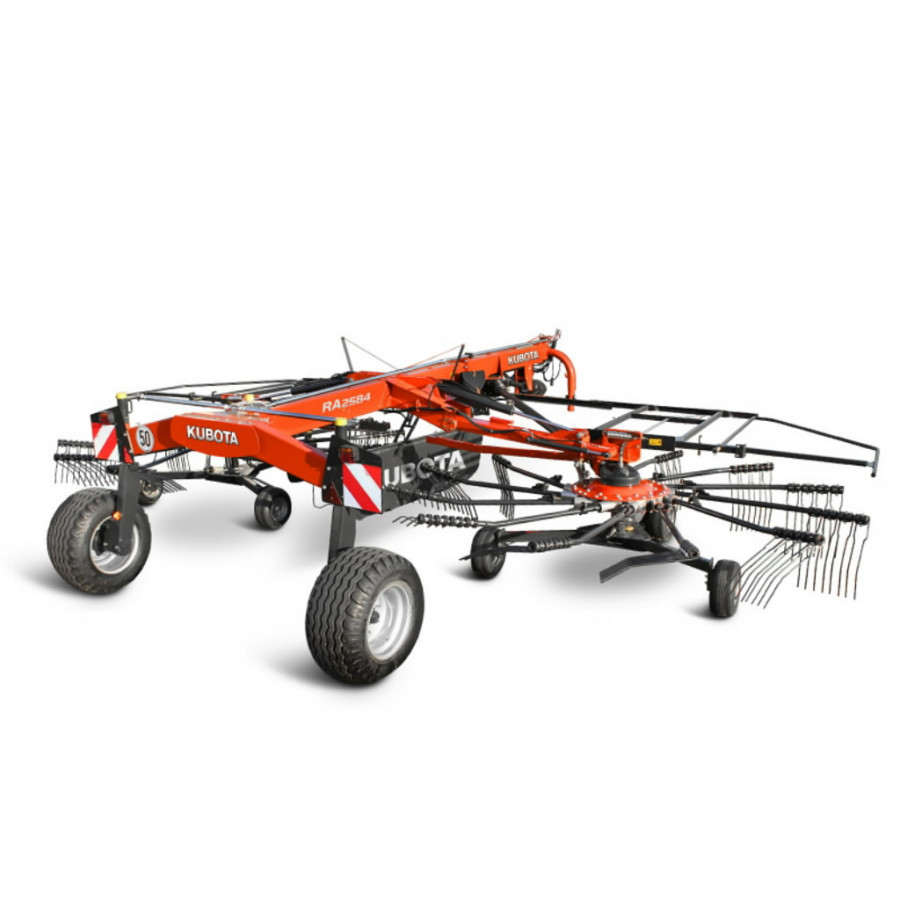

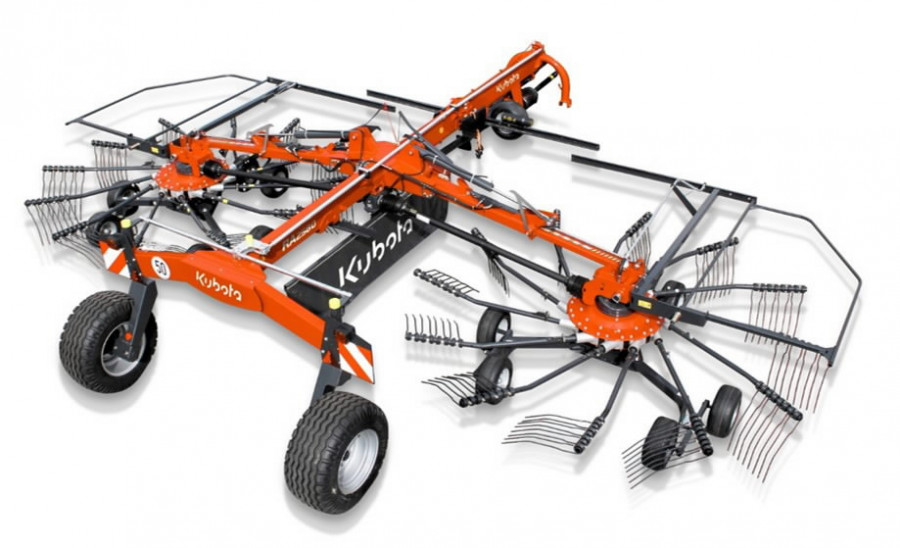

Rake KUBOTA RA 2590 Hydro, Kubota
Item code:RA2590HYDRO&KUB
- Strong carrier frame for stable raking performance and high ground clearance.
- TerraLink Quattro Ground contour following system with adaptation in 3 dimensions
- Actively steered wheels and headstock geometry allow sharp 80 degree turning angle
- Maintenance-free ProLine gear box with fully enclosed oil bath design
Request offer
ProfiLine twin rotor rake
Center delivery
Theoretical capacity 10ha/h
Center delivery
Theoretical capacity 10ha/h
Technical specificationsCentre delivery rake
ProfiLine, dual rotor
Theoretical capacity 10ha/h
Strong carrier frame for stable raking performance and high ground clearance.
TerraLink Quattro Ground contour following system with adaptation in 3 dimensions
Actively steered wheels and headstock geometry allow sharp 80 degree turning angle
Maintenance-free ProLine gear box with fully enclosed oil bath design
Working width: 8,00 -9,00 m, hydraulically adjustable from tractor cab
Transport width: 2,98 m
Transport length: 6,25 m
Transport height: 3,98 m
Parking height: 3,5 m, hydraulically lowered frame
Theoretical capacity: 10 ha/h
Weight: 2350 kg
Rotor diameter: 3,85m
No of rotors: 2
No of arms per rotor: 14
No of double tines per arm: 4
Tine diameter: 10 mm
Height adjustment: mechanical, Pro model= electrical
Tyres (rotor): 16 x 6,5 - 6
Tandem axle type: fixed, optional
Carrying frame tyres: 380/55 R17
Individual lifting of each rotor
Lift arm suspension standard
Hydraulic lift on headlands and actively steered wheels
Hydraulically to transport position
HydroLift lowering of complete machine up to 50 cm
Wide angle PTO with protection clutch, 1 3/8" - 6 splines

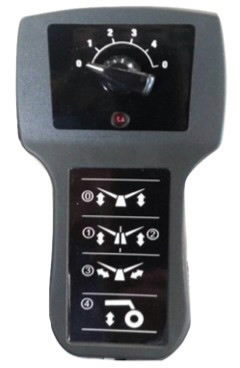

Control box
Warning panels and road lights
Technically permissable transport speed 40 km/h
Free float valve needed
Min power requirement 80-90 hp
Manufactured in Czech
Warranty 2 years
Pictures are illustrative and for non-contractual use
Working width
8,00 -9,00 m, hydraulically adjustable
Transport width
2,98 m
Transport length
6,25 m
Transport height
3,98 m
Parking height
3,5 m, hydraulically lowered frame
Theoretical capacity
10 ha/h
Weight
2350 kg
Rotor diameter
3,85m
No of rotors
2
No of arms per rotor
14
No of double tines per arm
4
Tine diameter
10 mm
Height adjustment
mechanical, Pro model= electrical
Tyres (rotor)
16 x 6,5 - 6
Tandem axle type
fixed, optional
Carrying frame tyres
380/55 R17
Detachable tine arms
+ (4)
ProfiLine, dual rotor
Theoretical capacity 10ha/h
Strong carrier frame for stable raking performance and high ground clearance.
TerraLink Quattro Ground contour following system with adaptation in 3 dimensions
Actively steered wheels and headstock geometry allow sharp 80 degree turning angle
Maintenance-free ProLine gear box with fully enclosed oil bath design
Working width: 8,00 -9,00 m, hydraulically adjustable from tractor cab
Transport width: 2,98 m
Transport length: 6,25 m
Transport height: 3,98 m
Parking height: 3,5 m, hydraulically lowered frame
Theoretical capacity: 10 ha/h
Weight: 2350 kg
Rotor diameter: 3,85m
No of rotors: 2
No of arms per rotor: 14
No of double tines per arm: 4
Tine diameter: 10 mm
Height adjustment: mechanical, Pro model= electrical
Tyres (rotor): 16 x 6,5 - 6
Tandem axle type: fixed, optional
Carrying frame tyres: 380/55 R17
Individual lifting of each rotor
Lift arm suspension standard
Hydraulic lift on headlands and actively steered wheels
Hydraulically to transport position
HydroLift lowering of complete machine up to 50 cm
Wide angle PTO with protection clutch, 1 3/8" - 6 splines
Control box
Warning panels and road lights
Technically permissable transport speed 40 km/h
Free float valve needed
Min power requirement 80-90 hp
Manufactured in Czech
Warranty 2 years
Pictures are illustrative and for non-contractual use
