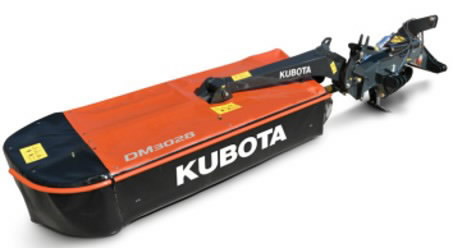

Mower KUBOTA DM 3036 Express, Kubota
Item code:DM3036EXPRESS&KUB
- All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting
- NonStop BreakAway
- The centre suspension provides an even weight distribution across the entire mowing width, and a constant, faster and more precise adaptation to ground contours
- Two speed gear box – the rotor speed can easily be changed by simply switching pulleys, to adapt to different conditioning requirements
StokkerPRO customer price
13395.00 +VAT €
16395.00 +VAT €
priceRequest offer
Fully welded cutterbar design
Rear mower
Fast changeable knives
For tractors from 60hp and upwards
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Hydraulic lift - perfect balance in transport folded over the gravity point, vertical lift behind tractor (inside tractor width)
Rear mower
Fast changeable knives
For tractors from 60hp and upwards
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Hydraulic lift - perfect balance in transport folded over the gravity point, vertical lift behind tractor (inside tractor width)
Technical specificationsRear plain mower with fast changeable knives
Hitch CAT 2/3
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Cutting width 3,5 m
Transport width 2,3 m
Transport height 3,7 m
PTO 540/1000 rpm, overrun clutch + friction clutch
10 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -15/+15
BreakAway, NonStop, spring loaded auto reset
Hydraulic lift on headlands up to 400 mm
Supplied with two mounting options of the mowing section, what ensures optimal overlap between a front and rear mounted unit
Swath disc (RH)
Integrated tool box for knives
Hydraulic lift

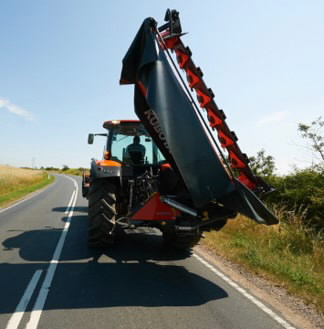

110 - 125° Vertical Transport Position
Weight 915 kg
Power requirement min 60 hp
No of hydraulic outlets: 1S
From optional equipment are included in price:
* high cut skids 40mm
* protection cutterbar-end
As optional parking stand available
Optional hydraulic ground pressure adjustment
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
Cutting width
3,5 m
Transport width
2,3 m
Transport height
3,7 m
PTO
540/1000 rpm
Hitch
CAT2/3
Power requirement min.
60 hp
No of discs
10
No of knives
30
Mowing angle
-15/+15
Breakaway
NonStop
Overrun clutch
+
Friction clutch
+
Hitch CAT 2/3
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Cutting width 3,5 m
Transport width 2,3 m
Transport height 3,7 m
PTO 540/1000 rpm, overrun clutch + friction clutch
10 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -15/+15
BreakAway, NonStop, spring loaded auto reset
Hydraulic lift on headlands up to 400 mm
Supplied with two mounting options of the mowing section, what ensures optimal overlap between a front and rear mounted unit
Swath disc (RH)
Integrated tool box for knives
Hydraulic lift
110 - 125° Vertical Transport Position
Weight 915 kg
Power requirement min 60 hp
No of hydraulic outlets: 1S
From optional equipment are included in price:
* high cut skids 40mm
* protection cutterbar-end
As optional parking stand available
Optional hydraulic ground pressure adjustment
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
