In Stock 1

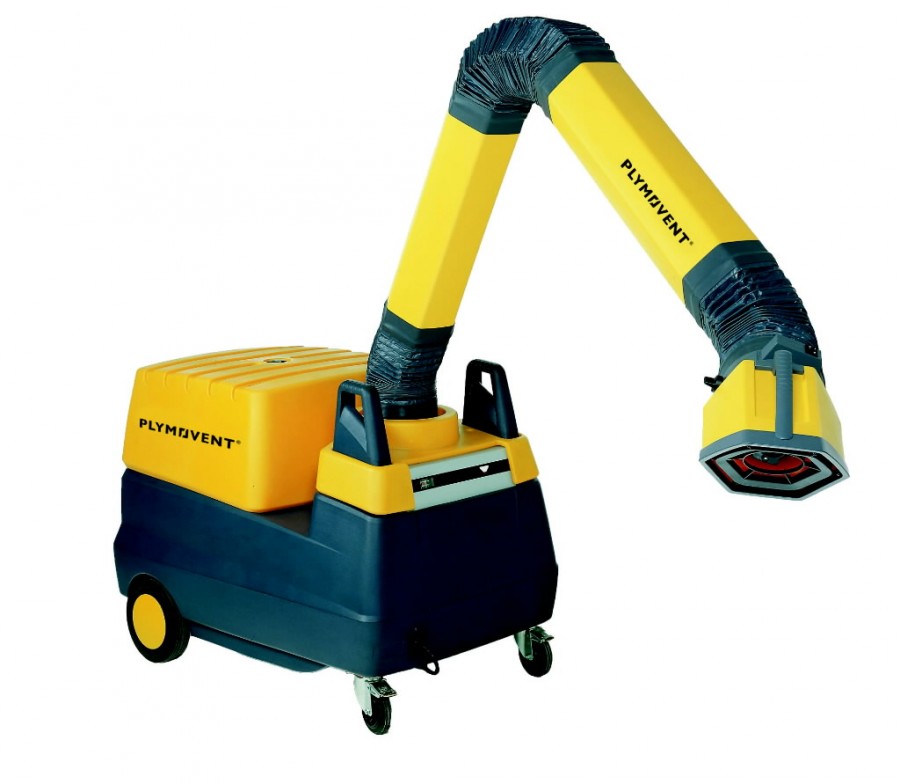

Mobile wheeled welding fume extraction and filtration device. The device is suitable for medium and high intensity welding (up to ~ 60kg of conventional wire, or 30kg of electrode per month).
Suction capacity 1250m3 / h.
Cellulose filter with a metal spark arrestor with an area of 50 m2.
Filter full alert.
El. power min 0.75kW.
Noise level max 69 dB (A).
Dimensions (without suction pipe) P1210xL810xK900mm.
Supply voltage 400V / 3f / 50Hz.
Extras:
7925170090&PLY - 3m extraction arm, 7925220090&PLY - 4m extraction arm,
Wear components:
9850060050 - FCC 50 filter;
9820310110 - Aluminium spark arrester.
Suction capacity 1250m3 / h.
Cellulose filter with a metal spark arrestor with an area of 50 m2.
Filter full alert.
El. power min 0.75kW.
Noise level max 69 dB (A).
Dimensions (without suction pipe) P1210xL810xK900mm.
Supply voltage 400V / 3f / 50Hz.
Extras:
7925170090&PLY - 3m extraction arm, 7925220090&PLY - 4m extraction arm,
Wear components:
9850060050 - FCC 50 filter;
9820310110 - Aluminium spark arrester.
