Metal lathe OPTIturn TM 3310D DPA31, Optimum

with digital position display DPA 31
Connection400 V / 3 Ph ~50 Hz
Driving motor spindle1.5 kW
Spindle taperMT 5
Spindle seatCamlock DIN ISO 702-2 Nr. 4
Spindle hole, rod passage 38 mm
Centre height165 mm
Centre width1000 mm
Turning Ų over lathe bed330 mm
Spindle speed65 - 2,000 min-1
Number of steps9 steps
Longitudinal feed in the range of0.02 - 0.4 mm/U; 24 feeds
Transverse feeds in the range of0.01 - 0.2 mm/U; 32 feeds
Pitch - Metric in the range of0.4 - 10 mm/U; 29 thread pitches
Pitch - Inch in the range of56 - 4 Gg/in.; 34 thread pitches
Tailstock seatMT 3
Tailstock- sleeve travel110 mm

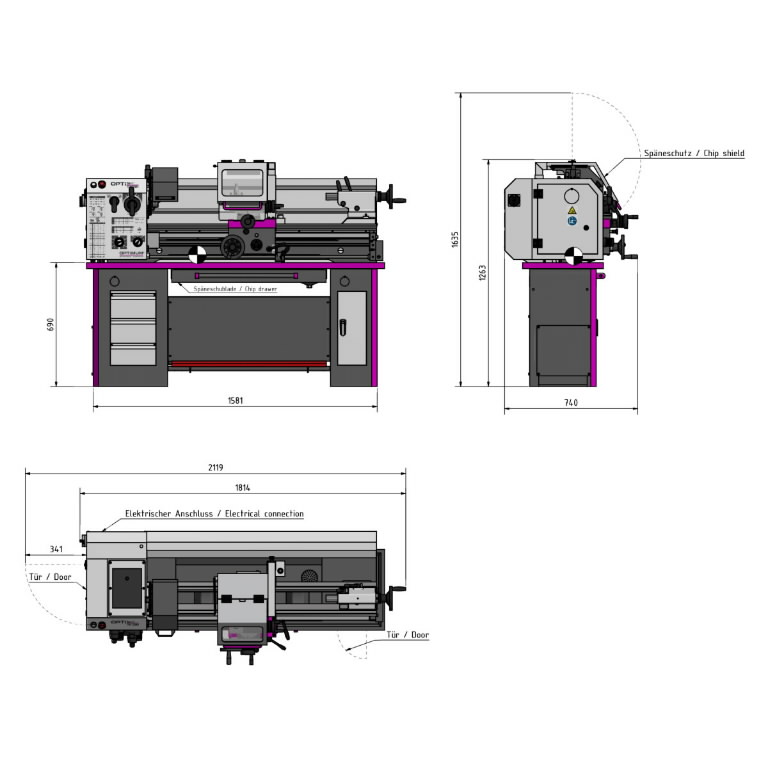

Dimensions (Length x Width x Height)1,814 x 740 x 1,263 mm
Net weight471 kg
