Laser welding machine Maxphotonics MA1-45 (up to 4,5mm), Theo
Item code:MA1-45&OTHER
Request offer
Technical specificationsTheo MA1-45 is a compact, easy-to-use, and highly efficient handheld laser welding system that significantly improves welding speed, greatly reduces training time, and offers superior return on invest compared to traditional welding methods. The fiberlaser system is air-cooled and no external chiller is required.
Industry’s Lightest Compact Handheld Laser Welding System.
- Truly Portable Design: 38kg
- Certified Safety and Quality (CE/FDA/ETL/ISO/EN)
- PL-d: ISO 13849-1
- Exceptional Efficiency: Up to 4x Faster than TIG
- Superior Laser Technology: 14μm Laser Spotsize
- Easy to Learn & Operate: Train operators in >1 hour

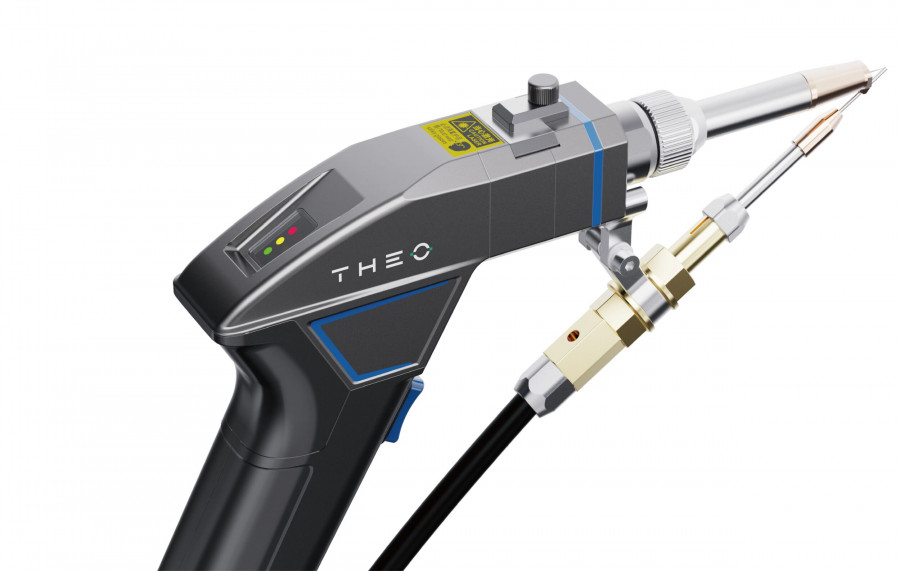

- Industry’s Lightest Welding Torch
- Included Wire Feeder & Wobble Welding
- Outstanding Welding Results
- Energy Savings: Up to 80% Less Electricity
- Up to 10 years lifetime of laser source
- 100% developed by Maxphotonics – 80% manufactured in-house.

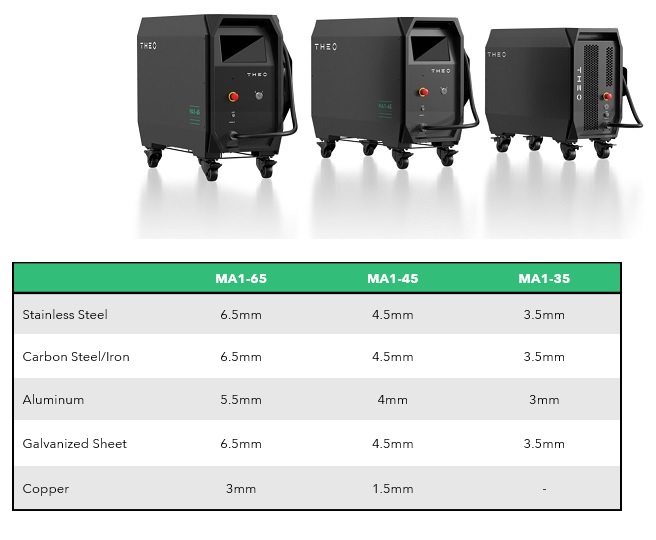

Up to 3,5mm material thickness (one sided limit welding seam):
- Stainless Steel up to 4.5 mm
- Carbon Steel up to 4.5 mm
- Aluminium up to 4 mm
- Galvanised Steel up to 4.5 mm
- Brass up to 3.5 mm
- Copper up to 1.5 mm
Product specifications:
Input Power 230Vac / 50Hz / 32A (Max 4,8KW)
Operating Ambient Temperature (°C) 0 - 40 °C
Operating Ambient Humidity 10 - 85 %
Storage Temperature (°C) -10 - 60 °C
Output (100% CW) 1200W
Power Regulation Range 10 - 100 %
Laser Cooling Method Phase change heat dissipation (air)
Tip Cooling Method Nitrogen / Argon
Operation Mode CW / Modulated
Polarisation Random
Central Wavelength 1080 nm
Fibre Width 20μm
Wobble Width 0 - 4 mm
Wobble Frequencey 0 - 280Hz
Continuous Light Output Time (S) Light 120S, Stop 6S
Weight 38 kg
Dimensions 667 x 276 x 542 mm
Length Of Optical Fibre Armoured Cable 5.6m
Industry’s Lightest Compact Handheld Laser Welding System.
- Truly Portable Design: 38kg
- Certified Safety and Quality (CE/FDA/ETL/ISO/EN)
- PL-d: ISO 13849-1
- Exceptional Efficiency: Up to 4x Faster than TIG
- Superior Laser Technology: 14μm Laser Spotsize
- Easy to Learn & Operate: Train operators in >1 hour
- Industry’s Lightest Welding Torch
- Included Wire Feeder & Wobble Welding
- Outstanding Welding Results
- Energy Savings: Up to 80% Less Electricity
- Up to 10 years lifetime of laser source
- 100% developed by Maxphotonics – 80% manufactured in-house.
Up to 3,5mm material thickness (one sided limit welding seam):
- Stainless Steel up to 4.5 mm
- Carbon Steel up to 4.5 mm
- Aluminium up to 4 mm
- Galvanised Steel up to 4.5 mm
- Brass up to 3.5 mm
- Copper up to 1.5 mm
Product specifications:
Input Power 230Vac / 50Hz / 32A (Max 4,8KW)
Operating Ambient Temperature (°C) 0 - 40 °C
Operating Ambient Humidity 10 - 85 %
Storage Temperature (°C) -10 - 60 °C
Output (100% CW) 1200W
Power Regulation Range 10 - 100 %
Laser Cooling Method Phase change heat dissipation (air)
Tip Cooling Method Nitrogen / Argon
Operation Mode CW / Modulated
Polarisation Random
Central Wavelength 1080 nm
Fibre Width 20μm
Wobble Width 0 - 4 mm
Wobble Frequencey 0 - 280Hz
Continuous Light Output Time (S) Light 120S, Stop 6S
Weight 38 kg
Dimensions 667 x 276 x 542 mm
Length Of Optical Fibre Armoured Cable 5.6m
