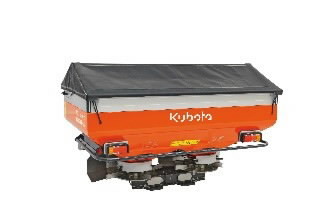

Fertilizer spreader DSM-W1100, Kubota
Item code:DSM-W1100&KUB
- Kubota spreaders discs have 8 large spreading vanes, which allow most accurate spreading pattern and reduce wearing of vanes
- RotaFlow system:central release point, smooth acceleration and centrifugal force accelerates fertilizer up to disc speed before it reaches the vane: no fragmentation, no dust
- Flat discs, horisontal spreading pattern - minimal wind influence, maximum tolerance
- Guaranteed accuracy on slopes
Request offer
With weighing system
Possible for front use
Isobus compatible
Possible for front use
Isobus compatible
Technical specificationsFertilizer spreader with weighing system
Optimal spreading of fertiliser means using exact amounts of nutrition and avoiding overlap. Different fertilisers have a mix of different granular sizes, which is influencing the spreading pattern and the maximum possible spreading width. The flow rate will depend very much on the fertiliser properties (granules size, shape and weight) and will change with increasing or decreasing the humidity. The ideal fertilizer has 80% of the granules in the size range 2- 4,75 mm - then wider working width, than bigger granular size should dominate. But not over 4,75 mm, as too big granules may damage the crop. A good blend needs granules with similar specific weights and similar sizes.
Kubota spreaders discs have 8 large spreading vanes, which allow most accurate spreading pattern and reduce wearing of vanes.
RotaFlow system:central release point, smooth acceleration and centrifugal force accelerates fertilizer up to disc speed before it reaches the vane: no fragmentation, no dust.
Flat discs, horisontal spreading pattern - minimal wind influence, maximum tolerance.
Guaranteed accuracy on slopes.
Standard features
* FlowPilot - easy setting and adjustment on each disc
* Border Spreading with hydraulic border spreading plate or TrimFlow system
* ISOBUS compatible
* Weighing System - unique refrence sensor in combination with load cells and continous dynamic calibration
* Basic Section Control - automatic spreading pattern adjustment
• Best weighing results and dosing control: unique in it’s segment
• Integrated weighing system
• 1x 10 ton load cell with reference sensor
• Standard full ISOBUS compatible
• Compact design: gravity point stays close to tractor
• Four hopper windows
• Tool to open the sieve
• Grading box to test the fertiliser quality
• Vanes for 10-24 m
• With longer vanes 28m spreading width possible
SPREADERControl License option:
• Basic Section Control
• Max. 7 sections of 4m
Technical data:
Hopper capacity: 1100l
Hopper extension 450l, in total 1550l
Filling height: 100cm
Total width: 220cm
Filling width: 214cm
Empty weight: 380kg
Spreading width: 10-24 (27/28) m, 27/28m possible with optional vane set
Output: 10-320kg/min
Optional equipment (included in price):
* Reflector set
* LED road lights
* Righthand flow limiter TrimFlow/ExactLine RH1100
* Hopper extension 450l
* Hopper cover, gray
Manufactured in Netherland Kverneland Nieuw-Vennep factory
Warranty 2 years
Pictures are illustrative and for non-contractual use
Hopper capacity
1100l
Hopper extension
450l
Filling height
100cm
Total width
220cm
Filling width
214cm
Empty weight
380kg
Spreading width
10-24 (27/28) m, 27/28m possible with optional vane set
Output
10-320kg/min
Optimal spreading of fertiliser means using exact amounts of nutrition and avoiding overlap. Different fertilisers have a mix of different granular sizes, which is influencing the spreading pattern and the maximum possible spreading width. The flow rate will depend very much on the fertiliser properties (granules size, shape and weight) and will change with increasing or decreasing the humidity. The ideal fertilizer has 80% of the granules in the size range 2- 4,75 mm - then wider working width, than bigger granular size should dominate. But not over 4,75 mm, as too big granules may damage the crop. A good blend needs granules with similar specific weights and similar sizes.
Kubota spreaders discs have 8 large spreading vanes, which allow most accurate spreading pattern and reduce wearing of vanes.
RotaFlow system:central release point, smooth acceleration and centrifugal force accelerates fertilizer up to disc speed before it reaches the vane: no fragmentation, no dust.
Flat discs, horisontal spreading pattern - minimal wind influence, maximum tolerance.
Guaranteed accuracy on slopes.
Standard features
* FlowPilot - easy setting and adjustment on each disc
* Border Spreading with hydraulic border spreading plate or TrimFlow system
* ISOBUS compatible
* Weighing System - unique refrence sensor in combination with load cells and continous dynamic calibration
* Basic Section Control - automatic spreading pattern adjustment
• Best weighing results and dosing control: unique in it’s segment
• Integrated weighing system
• 1x 10 ton load cell with reference sensor
• Standard full ISOBUS compatible
• Compact design: gravity point stays close to tractor
• Four hopper windows
• Tool to open the sieve
• Grading box to test the fertiliser quality
• Vanes for 10-24 m
• With longer vanes 28m spreading width possible
SPREADERControl License option:
• Basic Section Control
• Max. 7 sections of 4m
Technical data:
Hopper capacity: 1100l
Hopper extension 450l, in total 1550l
Filling height: 100cm
Total width: 220cm
Filling width: 214cm
Empty weight: 380kg
Spreading width: 10-24 (27/28) m, 27/28m possible with optional vane set
Output: 10-320kg/min
Optional equipment (included in price):
* Reflector set
* LED road lights
* Righthand flow limiter TrimFlow/ExactLine RH1100
* Hopper extension 450l
* Hopper cover, gray
Manufactured in Netherland Kverneland Nieuw-Vennep factory
Warranty 2 years
Pictures are illustrative and for non-contractual use
