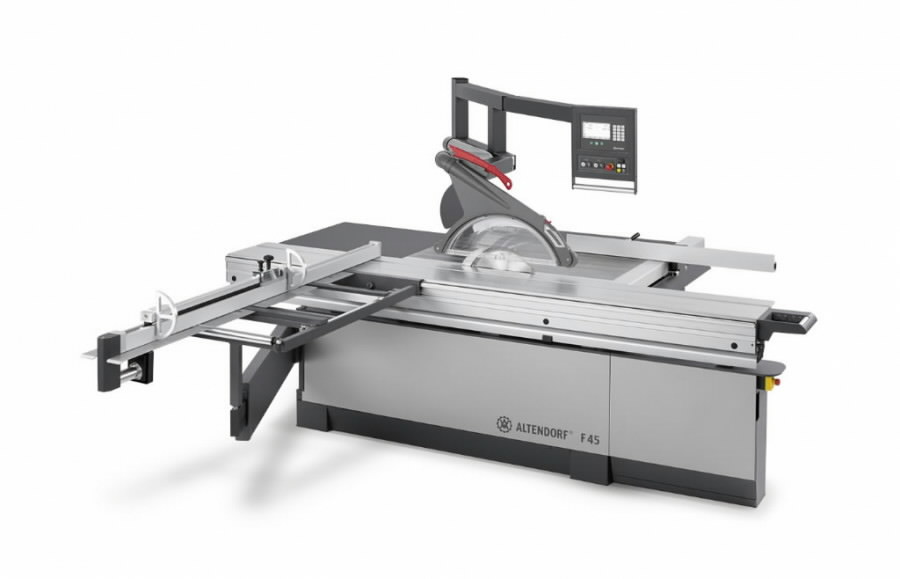

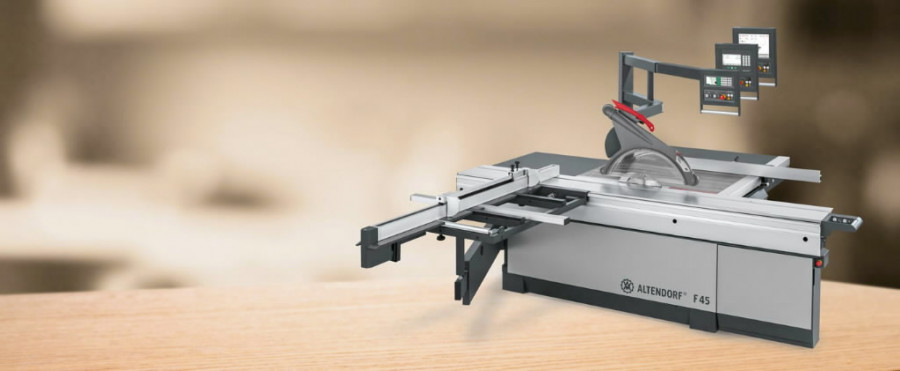

Technical specificationsBASIC SPECIFICATION
. Motorised rise/fall and tilt adjustment (0 . 46‹) for main saw blade with automatic
cutting height correction when the saw blade is tilted

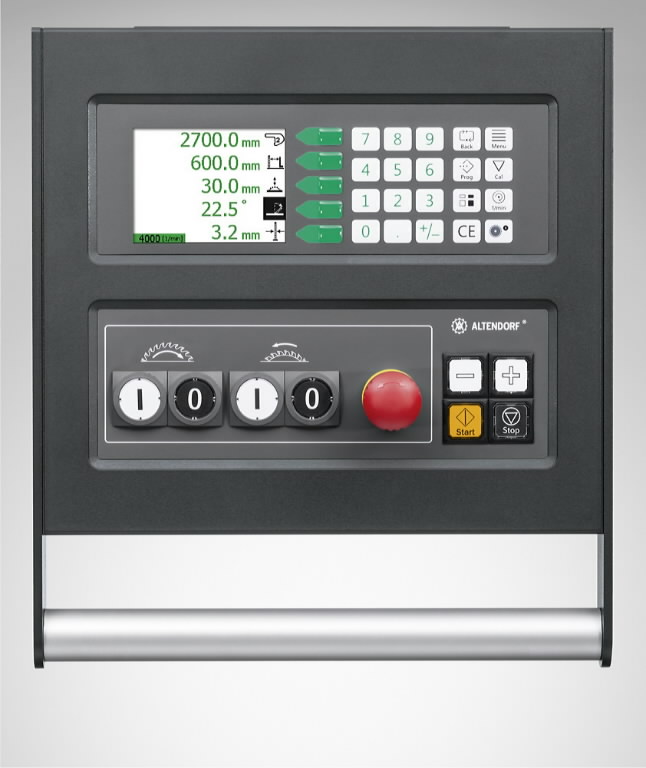

. Eye-level control unit, swivel-mounted
. Sliding table, table length 3,000 mm
. Rip fence, manual adjustment using graduated scale, includes fine adjustment,
cutting width 1,000 mm
. Crosscut fence with fixed 90‹ angle,
manual adjustment using graduated scale up to 3,200 mm
. Maximum saw blade projection 154 mm, maximum saw blade diameter 450 mm
. Motor rating 5.5 kW (7.5 HP) with three speeds (3/4/5,000 rpm)
. AKE tool clamping system for the main saw blade
. Working height 91 cm
. Motorised rise/fall and tilt adjustment (0 . 46‹) for main saw blade with automatic
cutting height correction when the saw blade is tilted
. Eye-level control unit, swivel-mounted
. Sliding table, table length 3,000 mm
. Rip fence, manual adjustment using graduated scale, includes fine adjustment,
cutting width 1,000 mm
. Crosscut fence with fixed 90‹ angle,
manual adjustment using graduated scale up to 3,200 mm
. Maximum saw blade projection 154 mm, maximum saw blade diameter 450 mm
. Motor rating 5.5 kW (7.5 HP) with three speeds (3/4/5,000 rpm)
. AKE tool clamping system for the main saw blade
. Working height 91 cm
