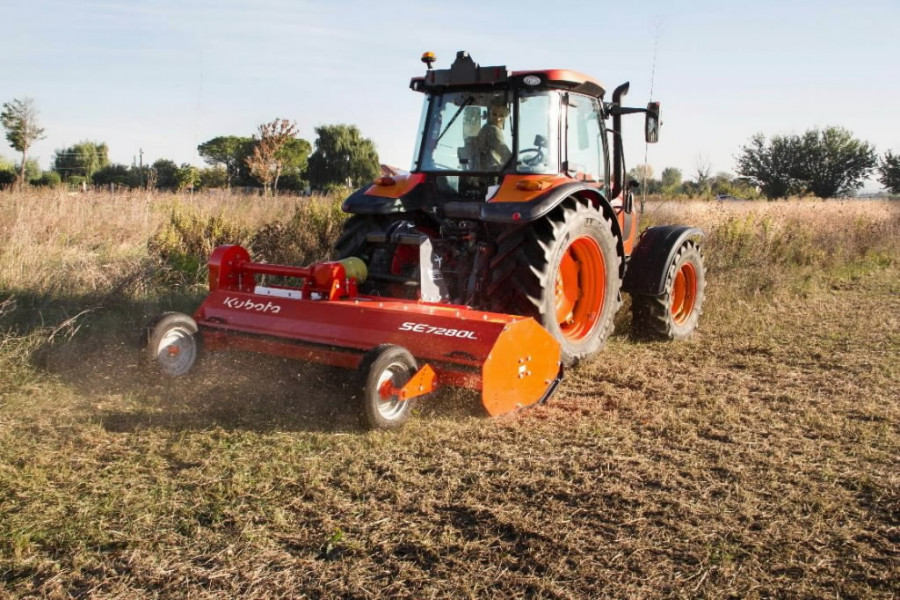

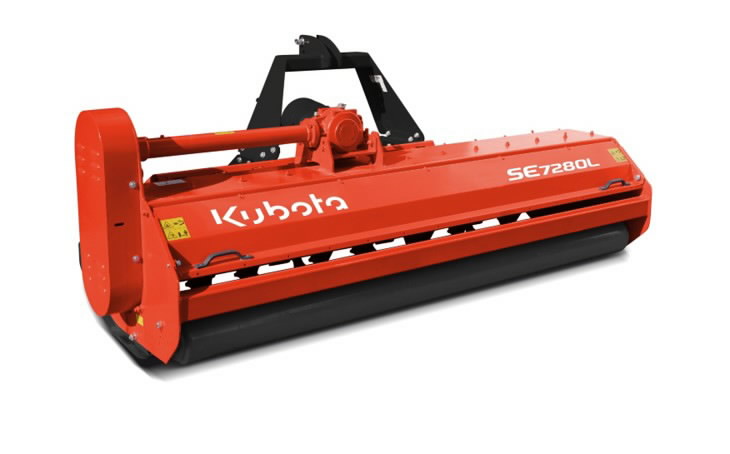

Chopper KUBOTA SE 7280L offset UB, Kubota
Item code:SE7280LOFFSET&KUB
- Excellent performance as well as very limited power requirement and maintenance activities
- High chopping chamber guarantees blockage free performance in even the toughest conditions
- The roller bearings are integrated and protected and do not need regular greasing
Request offer
Offset, for agri purposes
Compact heavy duty machine
For tractors 65 - 110 hp
Solid construction for long life and minimal maintenance
The standard skids
Optional support wheels or rear roller
Compact heavy duty machine
For tractors 65 - 110 hp
Solid construction for long life and minimal maintenance
The standard skids
Optional support wheels or rear roller
Technical specificationsOffset, with rear roller for agri purposes
For rear use, CAT2
Universal blades
Recommended power requirement: 65-110 hp
Working width 2,8 m
Transport width 3,0 m
Weight 940kg
PTO speed 540/1000 p/min
No of transmission belts 5, V-belts, screw tensioning
Universal blades 68 pcs, available also hammer blades 34 pcs
Blade distance 75 mm
Rotor 194 x 10 mm
Cutting diameter 600 mm
Rotor speed 1789-1887 p/min
Blade tip speed 56-59 m/s
Rear roller diam 245 mm (optional, included in price) - suggested for irregular fields and generally dry working conditions
2 pivoting wheels (155 SR13-optional, not included in price) - suggested for wet conditions giving perfect maneuverability
Skids
The rear cover can be opened due to perform in fields with large amounts of crop residue.
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
Working width:2,8 m
Transport width:3,0 m
PTO:540/1000 rpm
Power requirement:65-110 hp
Universal blades:68
Hammer blades:34
Offset
540 mm
Rear roller diam.:245 mm (optional)
For rear use, CAT2
Universal blades
Recommended power requirement: 65-110 hp
Working width 2,8 m
Transport width 3,0 m
Weight 940kg
PTO speed 540/1000 p/min
No of transmission belts 5, V-belts, screw tensioning
Universal blades 68 pcs, available also hammer blades 34 pcs
Blade distance 75 mm
Rotor 194 x 10 mm
Cutting diameter 600 mm
Rotor speed 1789-1887 p/min
Blade tip speed 56-59 m/s
Rear roller diam 245 mm (optional, included in price) - suggested for irregular fields and generally dry working conditions
2 pivoting wheels (155 SR13-optional, not included in price) - suggested for wet conditions giving perfect maneuverability
Skids
The rear cover can be opened due to perform in fields with large amounts of crop residue.
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
