Chopper KUBOTA SE 2200P, Kubota
Item code:SE2200P&KUB
- Wide choice of blades and sideways adjustment to maneuver around or under trees and bushes
- Solid construction for long life and minimal maintenance
- The standard roller and the skids support the chopper and provide a regular working height
StokkerPRO customer price
9990.00 +VAT €
11490.00 +VAT €
priceRequest offer

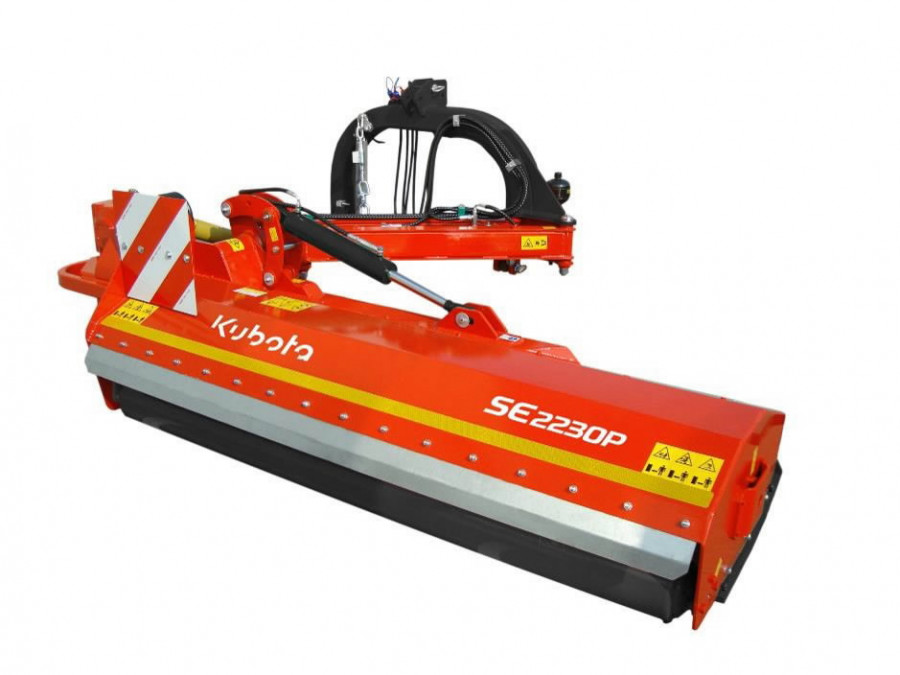

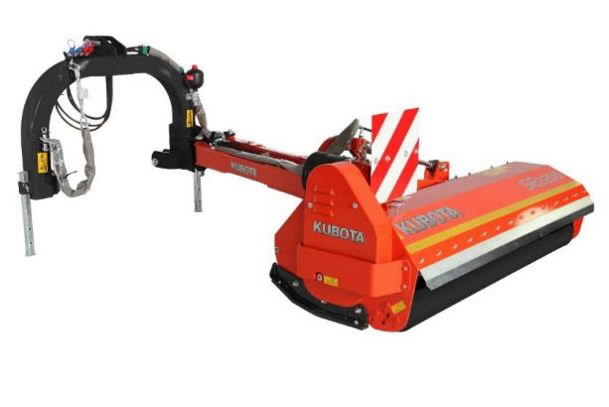

Offset verge chopper
Compact heavy duty machine
For tractors 70 -130 hp
Compact heavy duty machine
For tractors 70 -130 hp
Technical specificationsOffset verge chopper
For rear use, CAT2
Different working angle positions: adjustable +90/-65°
Horisontal working angle: adjustable 30-125 °
Recommended power requirement: 70-130 hp
Working width 2,0 m
Transport width 2,55m
Weight 900kg
PTO Walterscheid
PTO speed 540 rpm, freewheel clutch
Transmission belts 5 pcs, V-belts, automatic tensioning, maintenance free
As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit
Hammer blades 26 pcs, available also universal/Y-blades 52 pcs
Blades distance 75 mm
Rotor 169 x 10 mm
Cutting diameter 452 mm
Rotor speed 1858 rpm
Blade tip speed 44 m/s
Offset: 1250 mm, hydraulically adjustable
Rear roller diam 195 mm
Skids
Double skin 4mm as standard
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
Working width
2,0 m
Transport width
2,55 m
Working angle adjustable +90/-65°
PTO
540 rpm
Power requirement
70 - 130 hp
Universal blades
52
Hammer blades
26
Offset
1250 mm
Rear roller diam.
195 mm
For rear use, CAT2
Different working angle positions: adjustable +90/-65°
Horisontal working angle: adjustable 30-125 °
Recommended power requirement: 70-130 hp
Working width 2,0 m
Transport width 2,55m
Weight 900kg
PTO Walterscheid
PTO speed 540 rpm, freewheel clutch
Transmission belts 5 pcs, V-belts, automatic tensioning, maintenance free
As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit
Hammer blades 26 pcs, available also universal/Y-blades 52 pcs
Blades distance 75 mm
Rotor 169 x 10 mm
Cutting diameter 452 mm
Rotor speed 1858 rpm
Blade tip speed 44 m/s
Offset: 1250 mm, hydraulically adjustable
Rear roller diam 195 mm
Skids
Double skin 4mm as standard
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
