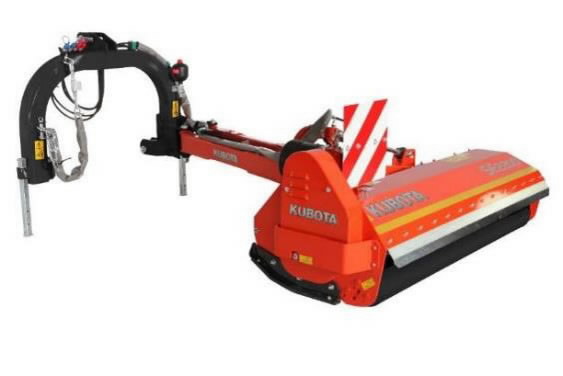

Chopper KUBOTA SE 2185HB, Kubota
Item code:SE2185&KUB
- Wide choice of blades and sideways adjustment to maneuver around or under trees and bushes
- Solid construction for long life and minimal maintenance
- The standard roller and the skids support the chopper and provide a regular working height
Request offer
Offset verge chopper
Compact heavy duty machine
For tractors 45 - 100 hp
Compact heavy duty machine
For tractors 45 - 100 hp
Technical specificationsOffset verge chopper
For rear use, CAT2
Different working angle positions: adjustable +90/-65°
Horisontal working angle: adjustable 30-126 °
Recommended power requirement: 45-100 hp
Working width 1,85 m
Transport width 2,10 m
Weight 780kg
PTO Walterscheid
PTO speed 540 rpm, freewheel clutch
Transmission belts 5 pcs, V-belts, automatic tensioning, maintenance free
As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit
Hammer blades 20 pcs, available also universal/Y-blades 40 pcs
Blades distance 75 mm
Rotor 169 x 10 mm
Cutting diameter 452 mm
Rotor speed 1800 rpm
Blade tip speed 43 m/s
Offset: 580 mm, hydraulically adjustable
Rear roller diam 195 mm
Skids
Double skin 4mm as standard
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
Working width
1,85 m
Transport width
2,10 m
Working angle adjustable +90/-65°
PTO
540 rpm
Power requirement
45 - 100 hp
Universal blades
40
Hammer blades
20
Offset
580 mm
Rear roller diam.
195 mm
For rear use, CAT2
Different working angle positions: adjustable +90/-65°
Horisontal working angle: adjustable 30-126 °
Recommended power requirement: 45-100 hp
Working width 1,85 m
Transport width 2,10 m
Weight 780kg
PTO Walterscheid
PTO speed 540 rpm, freewheel clutch
Transmission belts 5 pcs, V-belts, automatic tensioning, maintenance free
As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit
Hammer blades 20 pcs, available also universal/Y-blades 40 pcs
Blades distance 75 mm
Rotor 169 x 10 mm
Cutting diameter 452 mm
Rotor speed 1800 rpm
Blade tip speed 43 m/s
Offset: 580 mm, hydraulically adjustable
Rear roller diam 195 mm
Skids
Double skin 4mm as standard
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
