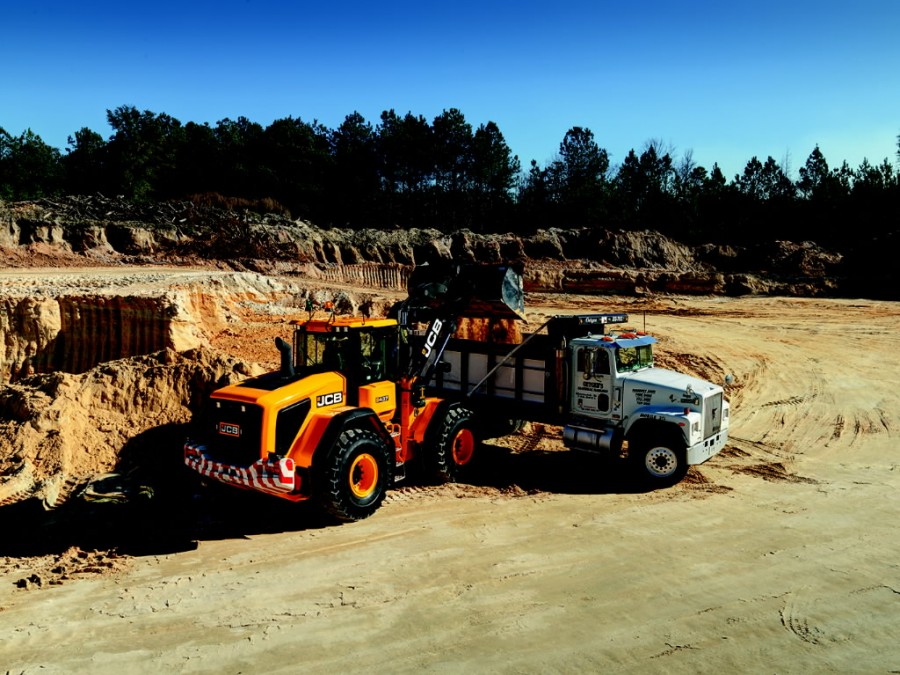

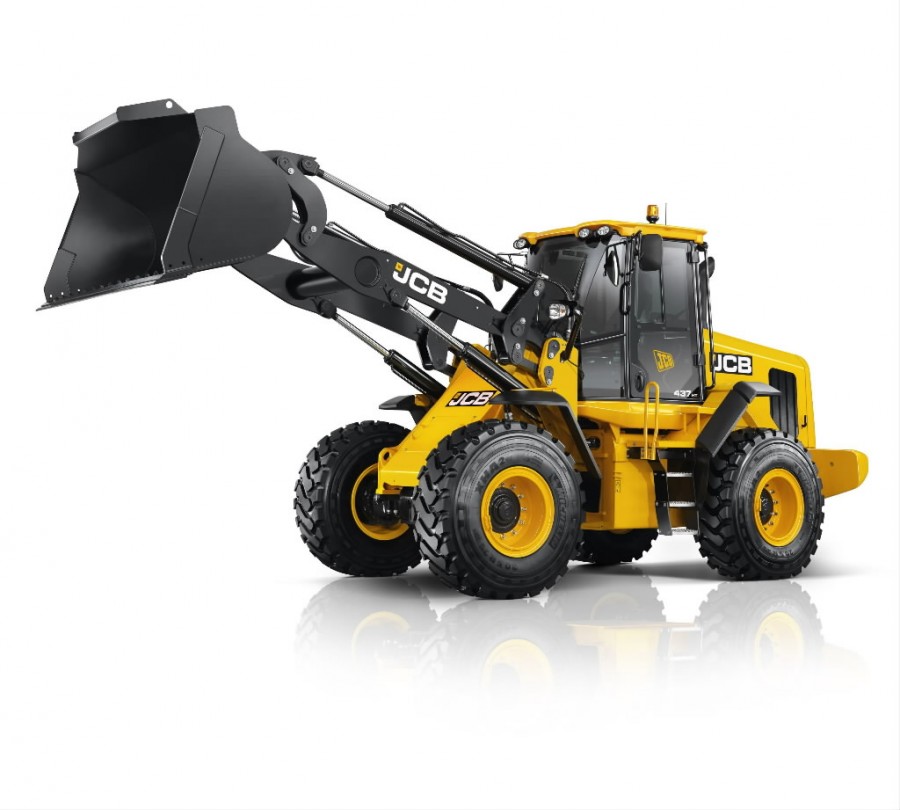

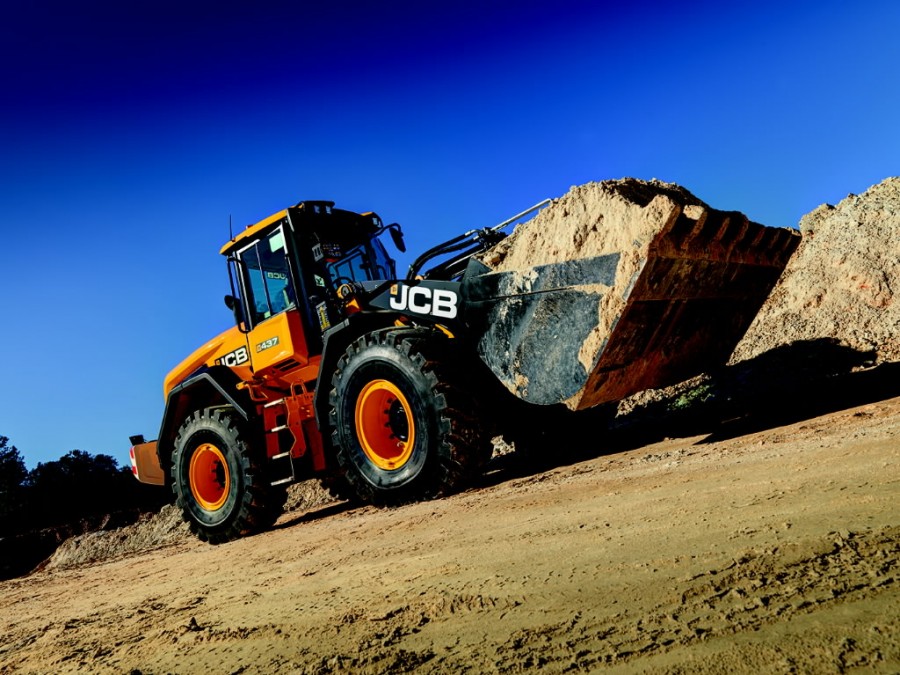

Wheel loader  437, JCB
Wheel loader  437, JCB
Wheel loader  437, JCB
  • 6.7 litre Cummins QSB engine with variable geometry turbo
  • Torque lock-up 5-speed transmission for maximum efficiency
  • Premium quality componentry and build for long service life
  • Heavy duty construction to cope with the toughest jobs
  • Latest Command Plus cab design for ultimate operator comfort
  • DPF-free engine design saves time and money
Like
Benefiting from our latest Command Plus cab, the new JCB 437 wheel loader is built to be strong, reliable and all-day comfy. As a key part of the on-site process, it’s also designed to perform great feats of productivity, offering superb performance without the time-consuming inconvenience of a DPF. By introducing Command Plus, we’re now able to add best-in-class comfort, visibility, ergonomics and quietness to the numerous other benefits of this wheel loader. Those benefits include superior serviceability, safety and a whole lot more
Feature
Rated power
136 kW
Machine weight
14797 kg
Travel speed
39,72 km/h
Pin height
4021 mm
FTTL
8495 kg
Suction stick for abrasive materials
The JCB 437 wheel loader’s articulation joint has a heavy-duty box section, a heavy-duty centre pin and oversized bush, as well as twin taper roller bearings on the bottom box joints. This setup can easily tolerate vertical and horizontal loadings. Finite element analysis, as well as extensive endurance and rig testing ensure superior structural strength and durability. Cold cell testing guarantees starting performance down to -20°C. High tolerances and accurate location of pins and bushes are assured with JCB’s precision machining techniques. State-of-the-art manufacturing processes like robot machining, precision paint technology and innovative assembly techniques help to achieve the very highest levels of build quality. A solid cast rear counterweight protects the rear of your JCB 437 wheel loader – including the rear lights and cooling pack – from damage. Hoses are neatly routed and clamped through the articulation joint, well away from any pinch points. The new front chassis is more durable than ever; it's been strengthened with additional ribs and gussets for maximum service life. For additional protection, there are impact-resistant fender edges and trims fitted. This wheel loader has integral steel fluid tanks for the ultimate in leak protection: a far superior solution to the plastic tanks favoured by some competitors.
