- Zero tailswing design boosts safety and operator confidence
- Tried and proven DPF-free EcoMAX engine offers great productivity
- Quiet, ergonomic and comfortable operator environment
- Heavy duty construction with premium componentry to cope with anything
- Easy and intuitive to service

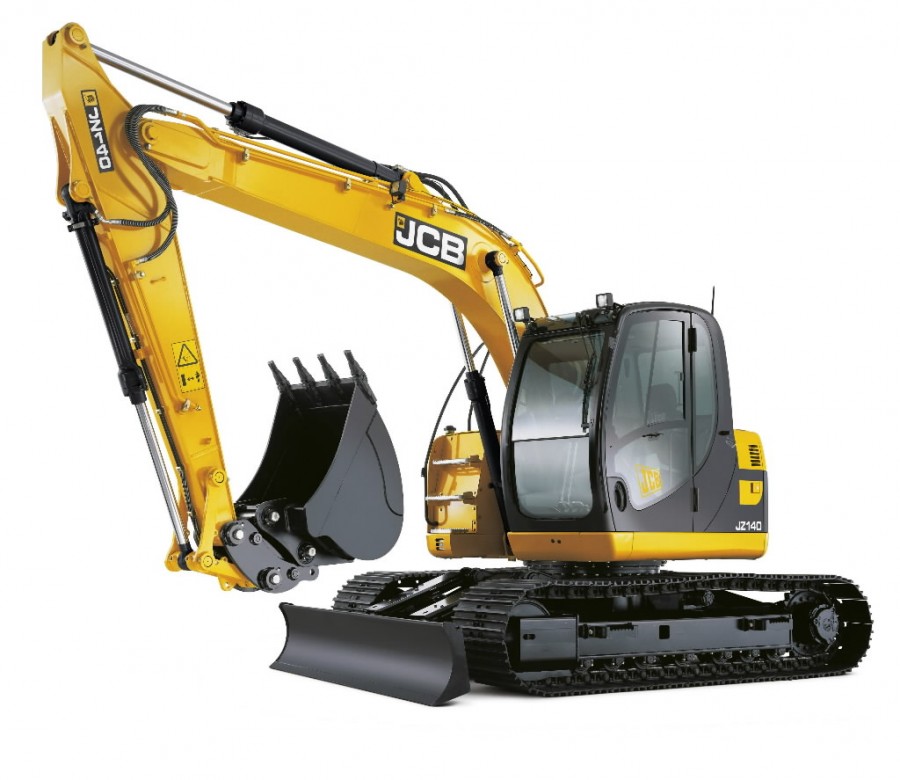

The new JCB JZ140 is an extremely productive reduced tailswing tracked excavator. A reduced tailswing design offers you greater levels of safety than a conventional excavator because manoeuvrability is superior, especially in restricted spaces. However, the benefits don’t end there. You’ll find that a JCB JZ140 is an extremely efficient and innovative machine, with the latest EcoMAX engine and state-of-the-art hydraulics fitted. What’s more, the cab and controls are incredibly intuitive, ergonomic and comfortable, while you’ll also find this excavator very easy to service and maintain.
Rated power
81 kW
Machine weight
15515 kg
Digging reach
8787 mm
Digging depth
6055 mm
The JCB JZ140 tracked excavator’s 7" colour multi-function display is easy to read in all light conditions, provides instant operational information, and has a customisable home screen. Our new basic tool select system (fitted as standard) allows the operator to set up the single direction auxiliary and hammer circuit to match the flow requirements. The selected flow is achieved by automatically adjusting the engine revs when the hydraulic service is operated. JCB SMART Control gives access to variable working modes with a manually selectable High Plus mode for ultimate productivity. The JZ140 creates a quieter working environment inside and out. Because we’ve reduced noise levels to 72dB(A) inside and 99dB(A) outside, you can use your excavator at any location, any time. This cab uses 6 viscous rubber mounts to minimise noise and vibration, and it’s positively pressured to keep out dirt and dust. There’s also a spacious luggage tray, as well as a large floor area with large high grip pedals. A climate control option offers a precisely controlled cab temperature with fresh or recirculated air. Demisting/defrosting functions keep a JZ140 excavator’s front window clear.
