- Maintenance-free oil-immersed gearbox
- Maintenance-free driveline with new HexaLink clutches and u-joints
- Strong chassis design with V headstock, fully enclosed mainframe and new alu rails
- Double acting cylinder support unfolding in all conditions and positions
- New hydraulic headland kit for easily lift and lowering at headlands

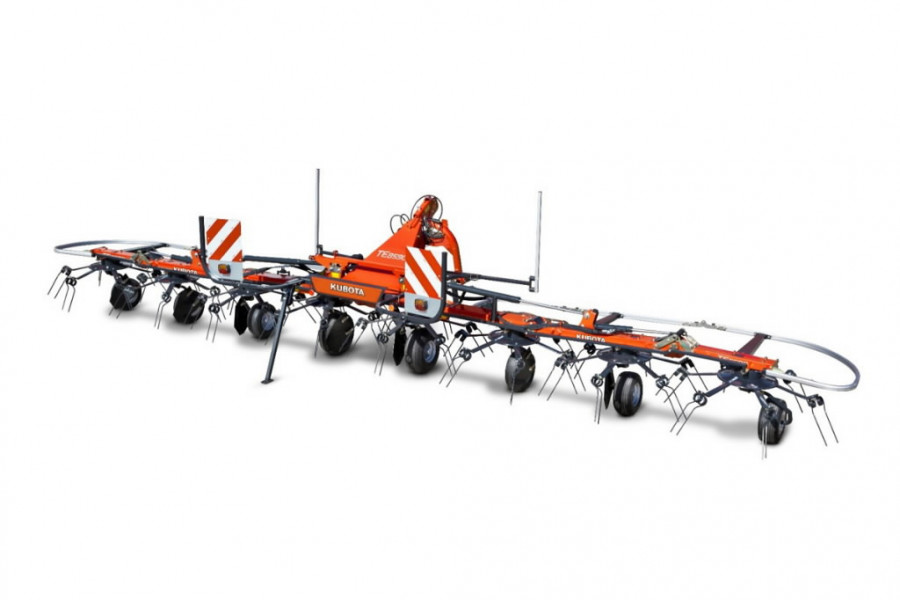

ProLine tedder
Theoretical capacity 9,0 ha/h
Theoretical capacity 9,0 ha/h
Working width
11,2m
Width, working position
11,7m
Transport width
2,94m
Transport length
2,37m
Storage height
3,8m
Capacity, theor.
9,0 ha/h
Weight
1600 kg
Hitch
CAT2
No of rotors
10
No of tine arms per rotor
6

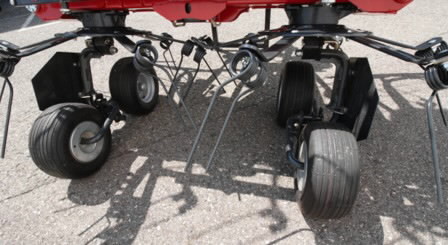

Wheels (rotor)
16x6,50-8
Tyres on mid frame
18,5x8,5-8
Oscillation damper/integral lock
+
Adjustment of spreading angle
+
Cab controlled border clear system, mechanically adjustable
Warning panels with integrated lighting
Theoretical capacity 9,0 ha/h
Connection to 3-p linkage CAT2
Maintenance-free oil-immersed gearbox
Maintenance-free driveline with new HexaLink clutches and u-joints
Strong chassis design with V headstock, fully enclosed mainframe and new alu rails
Double acting cylinder support unfolding in all conditions and positions
New hydraulic headland kit for easily lift and lowering at headlands
HexaLink provides the option fold arms into very compact transport and storage dimensions
U-joints provides extremely accurate and reliable power transmission where pressure is highest
Working width: 11,2m
Width, working position: 11,7m
Transport width: 2,94m
Transport length: 2,37m
Storage height: 3,8m
Capacity, theor.: 9,0 ha/h
Weight: 1600 kg
Hitch: CAT2
No of rotors: 10
No of tine arms per rotor: 6
Wheels (rotor): 16x6,50-8
Tyres on mid frame: 18,5x8,5-8
Oscillation damper/integral lock: +
Adjustment of spreading angle: +
Cab controlled border clear. system, mechanically adjustable
Warning panels with integrated lighting
Min power requirement 100 hp
As optional equipment included in price:
* Tandem axle
* Anti wrapping plates 9pcs
As optional equipment available (not included in price):
* Hydraulic border tedding adjustment
* Supplementary support wheel 16" attached to 3-pt headstock
* Tine safer clips 60pcs
* Spear wheels 16", 18,5"
* Night-swath equipment
Warranty 2 years
Pictures are illustrative and for non-contractual use
