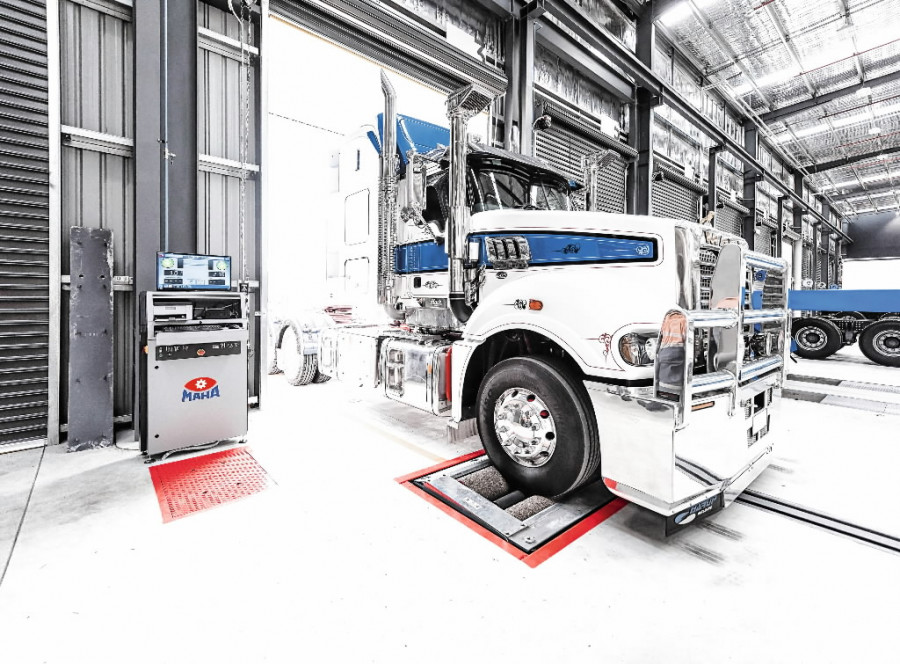

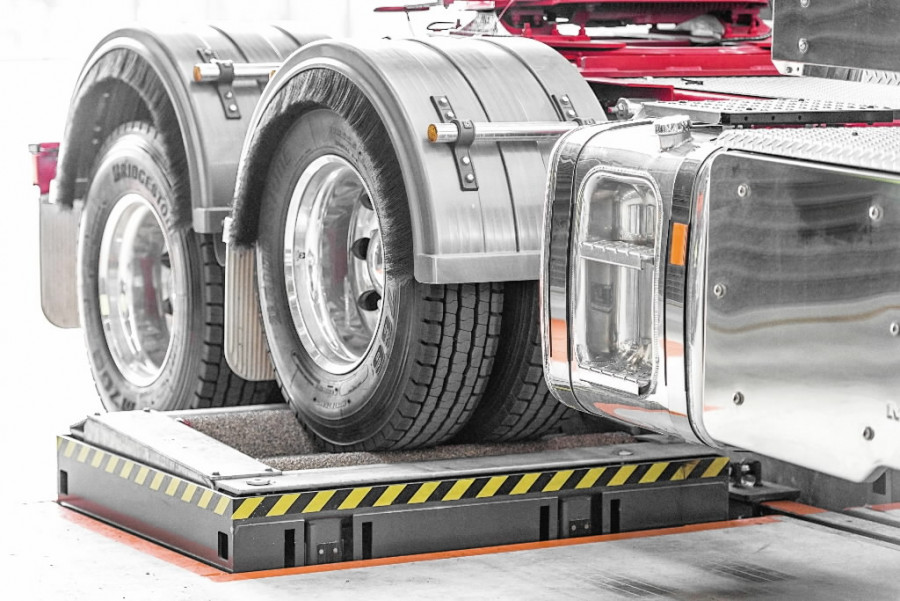

The test-lane-compatible roller brake tester MBT 7250 EUROSYSTEM is designed for the brake testing of trucks with axle loads of up to 18.0 t and is ideal for truck diagnostics in situations of high vehicle throughput. Its large sensor roller, with a diameter of 100 mm, guarantees measurable coverage across all tyre dimensions. As it is possible to connect additional EURO floor units, the brake tester can be used as a base module for the setting up of test lanes.
Technical data:
Axle load (can be driven over)18000 kg
Drive power2 x 11 kW
Test speed3 km/h
Roller length1150 mm
Roller diameter265 mm
Roller axle distance475 mm
gG fuse63 A
Power supply3/N/PE 400 V 50 Hz
