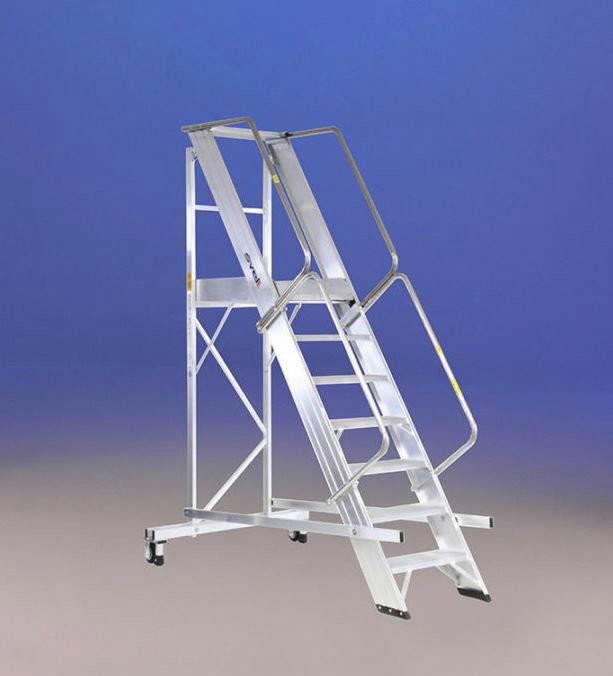

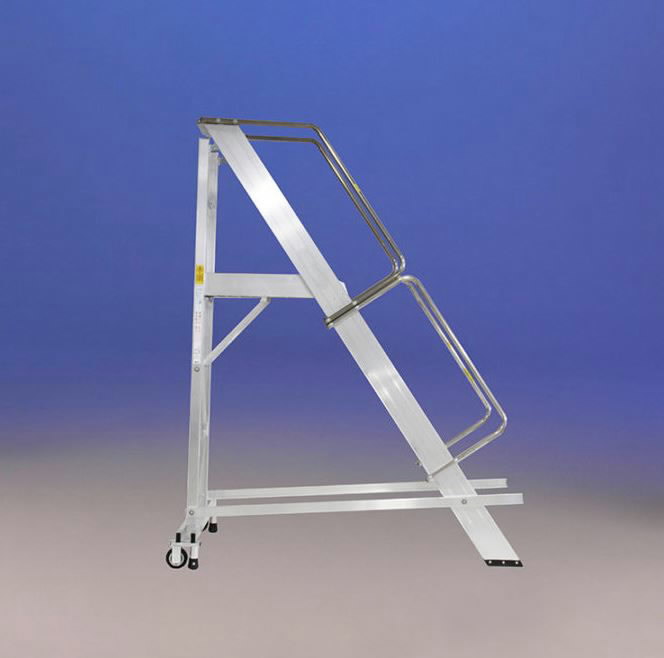

Aluminium ladder with 4 self-blocking wheels, 2 arms, platform, tool-tray, guardrail and handrail. It is equipped with reinforced anti-opening/closure bars.
It is particularly suitable for use in warehouses, stock rooms, high access points with machinery, airports, gymnasiums and other areas where safe, guarded high level access is required.
Its wide steps, its 100-cm guardrail and its large aluminium working platform permit to work in a comfortable, safe way.

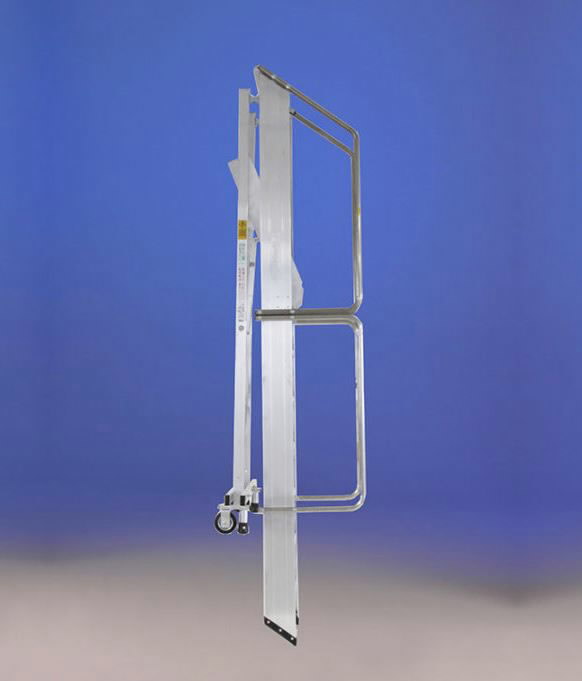

The quick positioning aluminium hinges grant total folding and compact thickness for transportation.
4 wheels ø 80 mm allow moving the ladder simply pushing it.
The braking system is automatic when the ladder is open for use and the operator climbs.
When the ladder is moved with the raising arms, the rubber feet rise allowing the wheels to move effortlessly on the ground.
It is tested and produced according to the European Standard EN131.
TECHNICAL FEATURES
• Base stabiliser with ergonomic feet and wheels Ø 125 mm

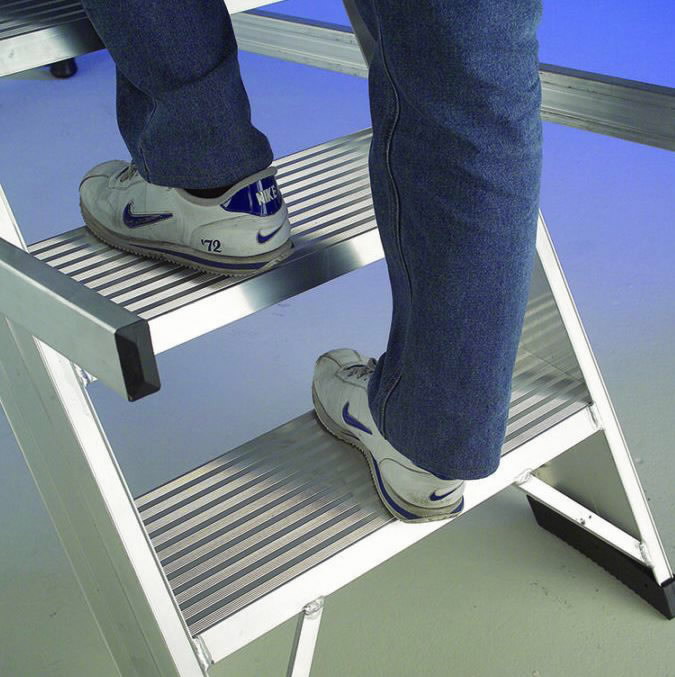

• Non-skid steps 20 cm
• Distance between steps 23 cm
• Capacity 150 kg (one person)
• Frame profile 200x30 mm
• Guardrail height 100 cm
• Toeboard height 10 cm
• Front width 60 cm
• Front part inclination 55°
• Large platform 53x92 cm
• No. of rungs: 12
• Platform height: 2,76 m
STANDARD PARTS

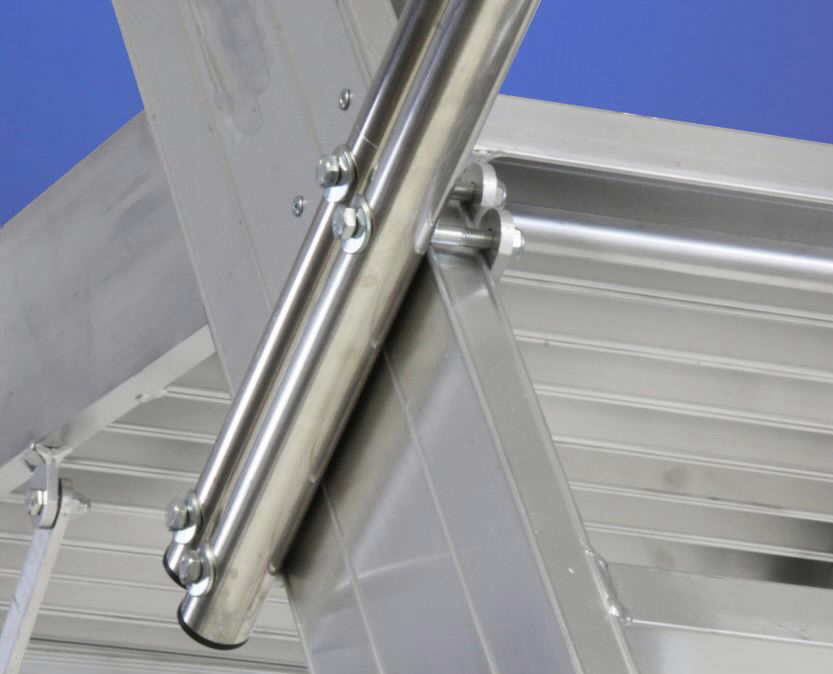

• Reinforced anti-opening/closure arms

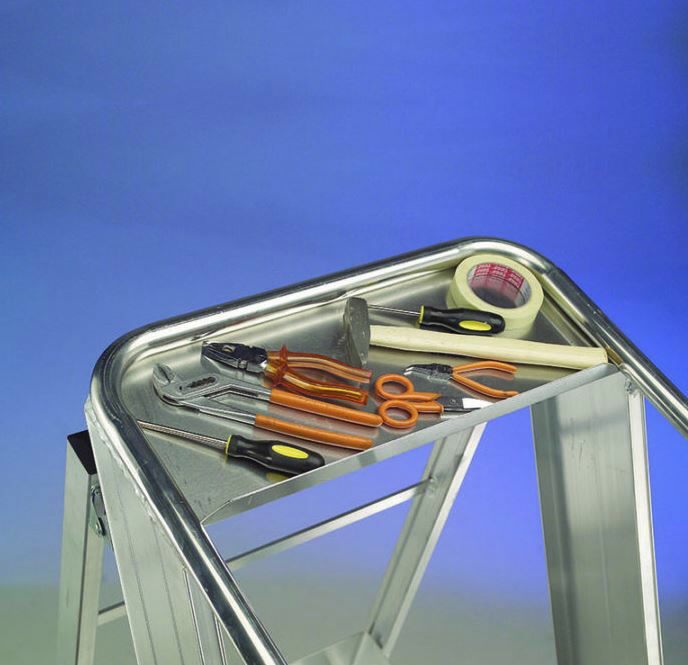

• Tool-tray with capacity 15 kg
• Ribbed frame and supports under the longest steps
• Ergonomic reinforced non-skid rubber feet
• Label and instructions for assembly and use
• Thermo-shrinkable plastic package with showcard
On request:
• Short stabiliser (75 cm long) for use in narrow corridors
All pictures and videos are illustrative.
