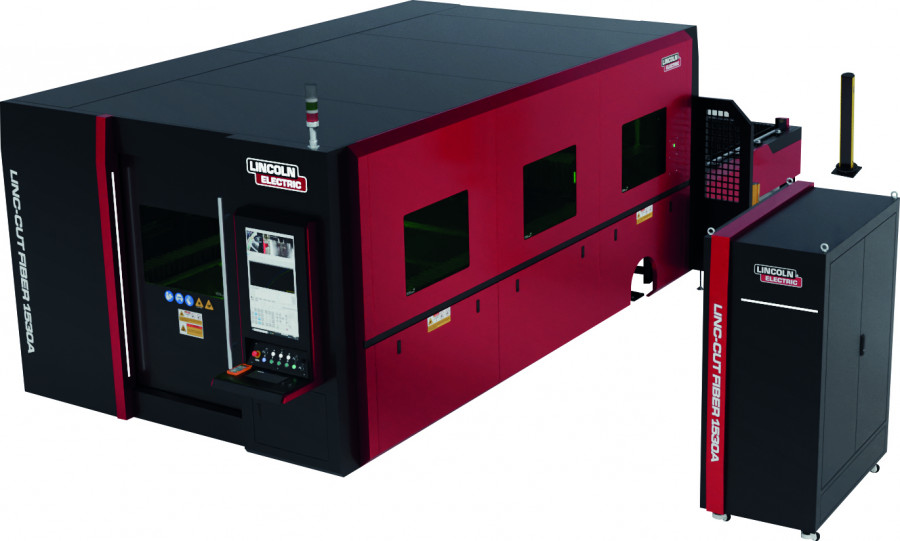

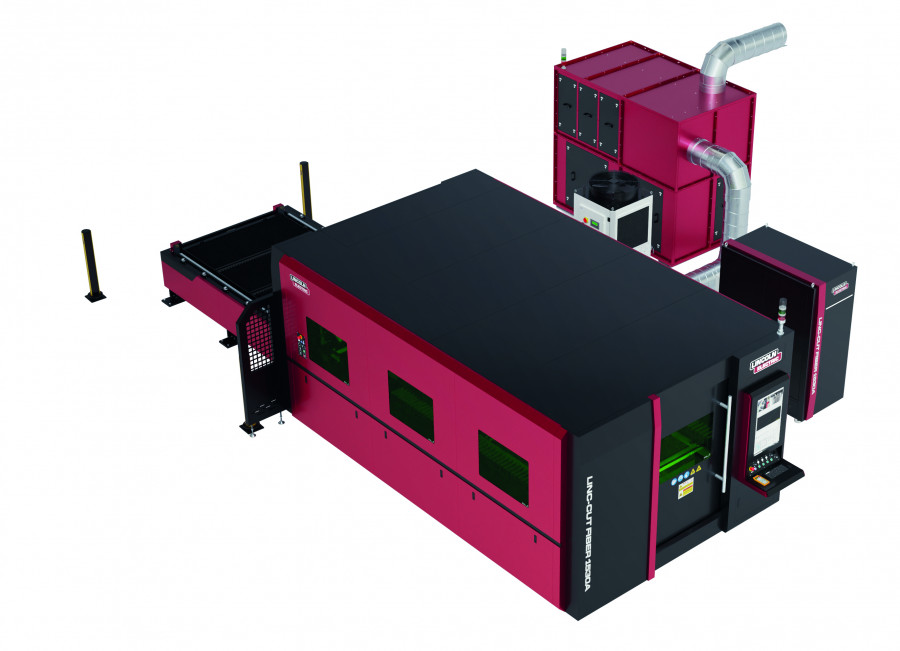

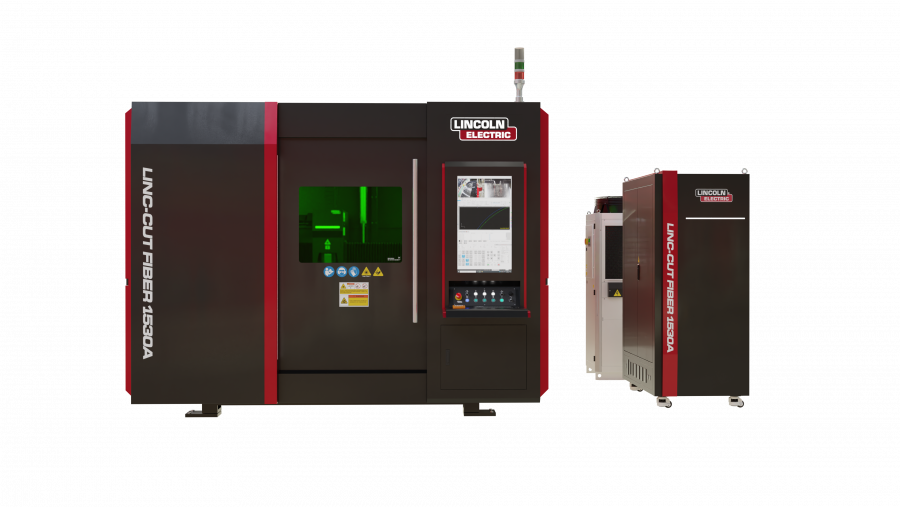

Laser cutting machine Linc-Cut Fiber 1530A
Linc-Cut Fiber 1530A is a sheet-metal laser cutting machine, which provide a superior cut quality.
It is a complete Turn Key Solution and provides remarkable benefits:

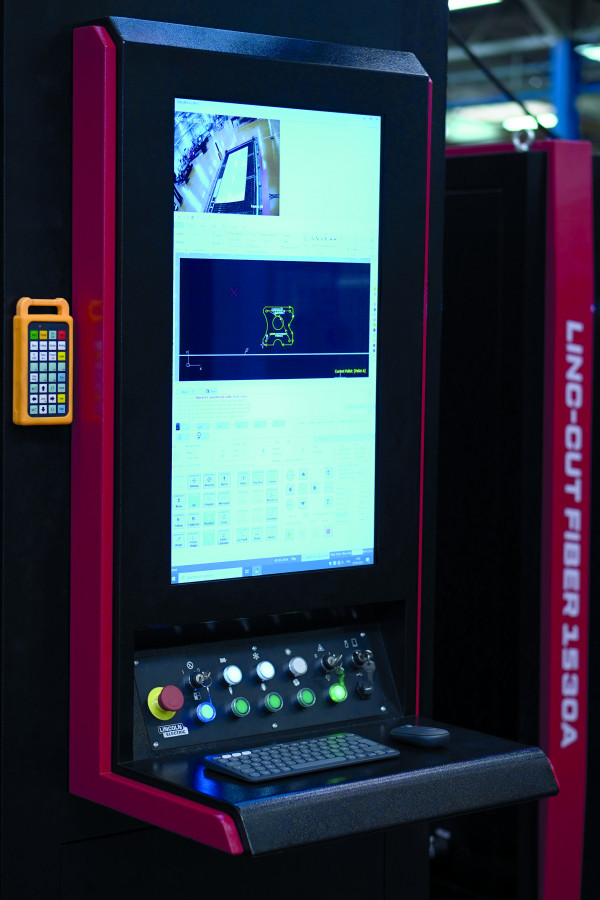

• Centralised control console
• Fiber laser power source of 3 kW or 6 kW
• Double shuttle table 1500 x 3000 mm
• Protective enclosure
• Security windows for better viewing
• Secure laser head access door
• Light safety barrier
• Fume Extraction with DIGIFILTER
• 2 year warranty.
Main performances:
• Work area (mm) - 1 530 x 3 100 mm (For sheet metal size: 1 500 x 3 000 / 1 250 x 2 500 / 1 000 x 2 000 mm).
• Max load - 1000 kg
• Positioning speed - 110 m/min
• Precision of positioning - 0,03 mm
• Cutting capacity:
- 3 kW model - Productivity up to 16 mm; Maximum up to 20 mm.
- 6 kW model - Productivity up to 20 mm; Maximum up to 25 mm.
Everything is designed to produce the best cutting quality:
• Linear guides
• Fast Accel/Decel
• Rigidity and mechanical precision
• Automatic lubrication
• Perfect synchronisation between the laser and machine movements.
Sustainable
• Machine structure with integrated suction section.
• Drawers for small parts and small scraps.
• Smoke extraction with DIGIFILTER.
• Protection of the machine frame against power laser using refractory bricks.
• Automatic lubrication of linear rails and helical rack pinions.
• Automatic gas selection and regulation.
• Electrical cabinet with air conditioning.
• Interior cabin lighting using LED strips.
• CNC remote control.
• Laser head cleaning brush on cycle.
All pictures and videos are illustrative.
