Drilling/milling output
Max. size milling head100 mm
Max. size shaft milling cutter25 mm
Drilling performance steel (S235JR)30 mm
Continuous drilling performance steel (S235JR)25 mm
Electric Data
Supply voltage400 V
Mains frequency50 Hz
Electrical connections
Total rated value4.5 kW

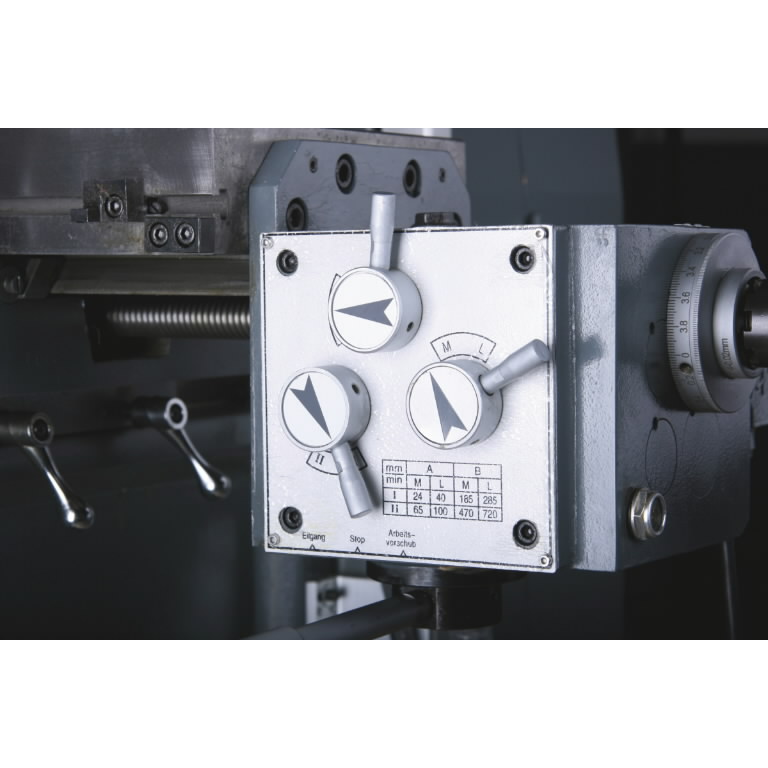

Feed speed
X axis24 – 720 mm/min
Horizontal spindle
Drive motor output1.5 kW
Reach0 – 185 mm
Spindle chuckISO 40 DIN 2080
Speed range60 – 1350 min¯¹
Number of gears9

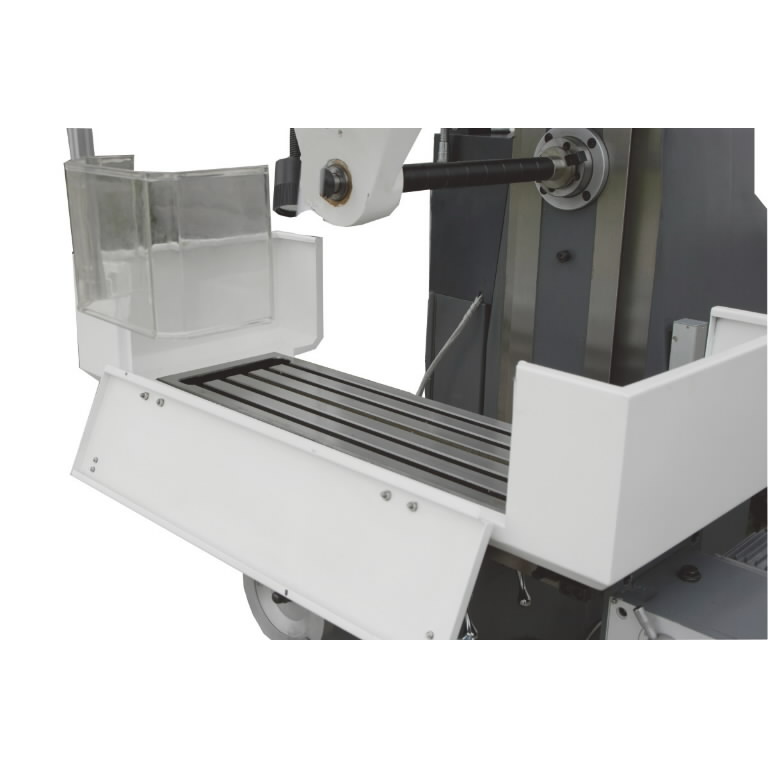

Milling table horizontal
Table length1000 mm
Table width240 mm
T-groove size14 mm
T-groove number4
Max. load bearing capacity160 kg
Travel
X axis manual580 mm
Y axis manual200 mm
Z axis manual340 mm
X axis automatic500 mm
Vertical spindle
Reach240 – 650 mm
Spindle chuckISO 40 DIN 2080
Speed range115 – 1750 min¯¹
Number of gears8
Vertical spindle normal operation1.1 / 2.2 kW
Quill stroke120 mm
