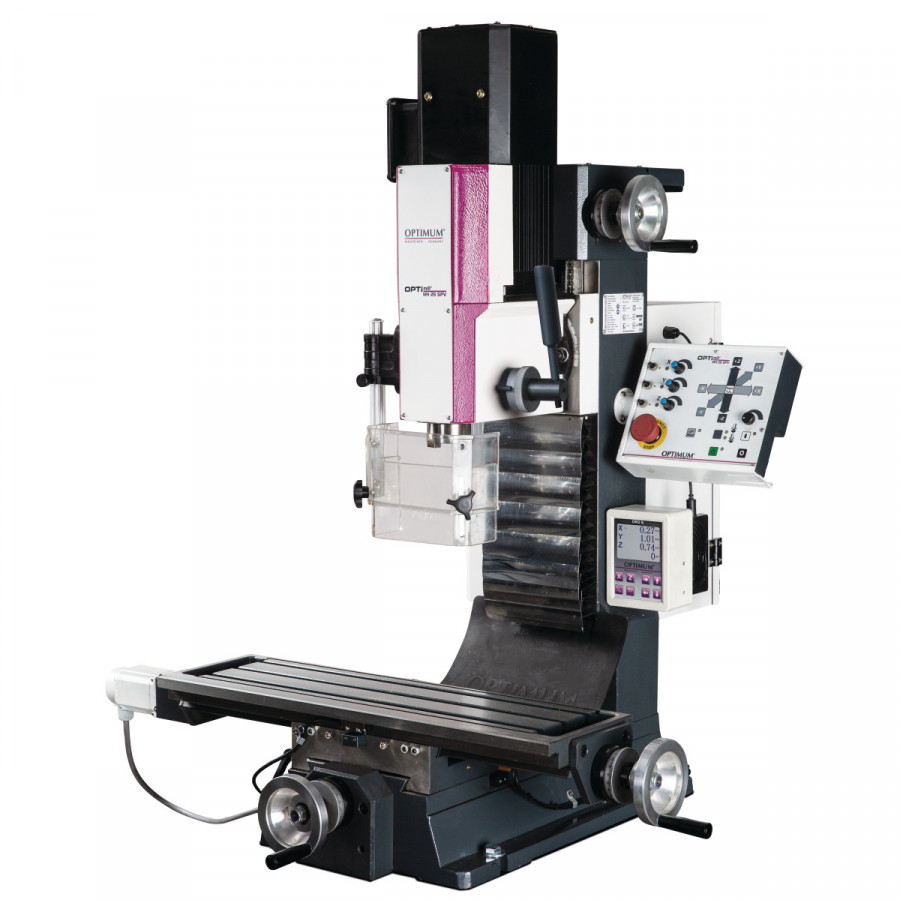

Sturdy milling machines with electronically infinitely variable drive, stepper motors and DRO 5 digital readout
Max. size milling head 50mm
Max. size shaft milling cutter 25mm
Fast motion speed X axis 150 – 930mm/min
Fast motion speed Y axis 100 – 580mm/min
Fast motion speed Z axis 80 – 450mm/min
Supply voltage 230V/50Hz
Horizontal milling table length 620mm
Horizontal milling table width 180mm
Min. clearance vertical spindle - horizontal milling table 0mm
Max. clearance vertical spindle - horizontal milling table 300mm
Horizontal milling table T-groove size 12mm
Horizontal milling table T-groove number 3
Horizontal milling table T-groove spacing 50mm
Horizontal milling table max. load bearing capacity 30kg
Travel X axis manual 400mm
Travel Y axis manual 210mm
Travel Z axis manual 270mm
Travel X axis automatic 380mm
Travel Y axis automatic 130mm
Travel Z axis automatic 190mm
Vertical spindle reach 185mm
Vertical spindle spindle chuck BT 30
Vertical spindle speed range 200 – 4000min¯¹
Vertical spindle number of gears 1
Vertical spindle speed control electronically adjustable
Vertical spindle drive motor output normal operation 1,5kW
Vertical spindle drive motor torque 10Nm
X axis feed speed 150mm/min
Y axis feed speed 100mm/min
Z axis feed speed 80mm/min
Feed motor torque X axis continuous operation S1 2.2Nm
Feed motor torque Y axis continuous operation S1 2.2Nm
Feed motor torque Z axis continuous operation S1 4.2nm
Total rated value 2kW
