150.00 € +undefined
In Stock 3
Sawblade: 216 mm
Voltage / Frequency: 220-240 V ; 50/60 Hz
Rated input power S1 100%: 1.100 W
No load speed: 5000 /min
Load speed: 3800 /min
Dimensions LxWxH: 477x463x490 mm
Max cutting width: 90°/45°: 120x80
Max cutting depth: 90°/45°: 60x45
Max. workpiece dimensions: 90°/90° WxH: 120x60
Max. workpiece dimensions: 45°/45° WxH: 80x45
Mitre Range - left / right: 47° / 47°
Bevel Range left/right: 47° / 2°
Weight: 8,7 kg
Cable: 2m

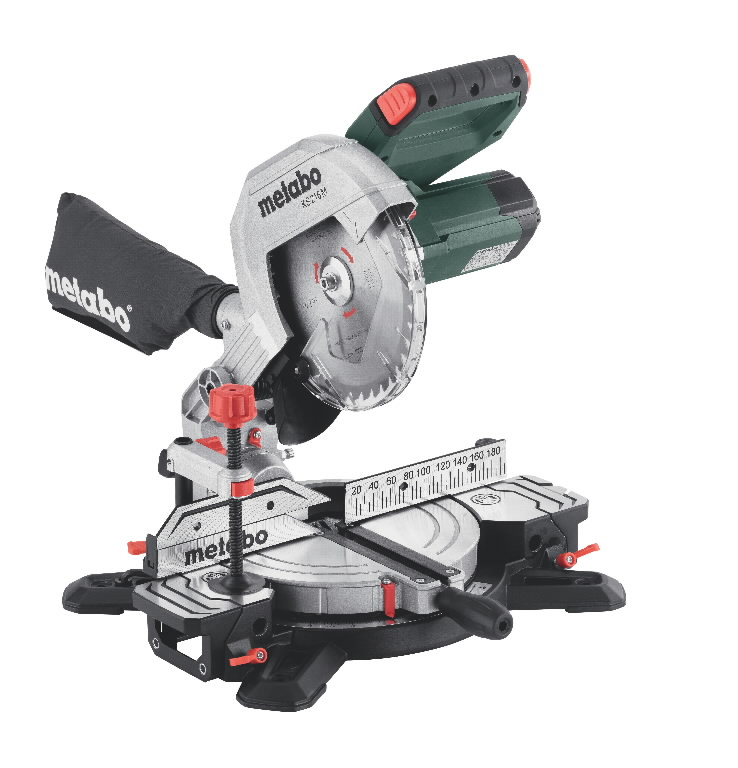

Compact crosscut and mitre saw of the mobile M-class - light, precise, user-friendly

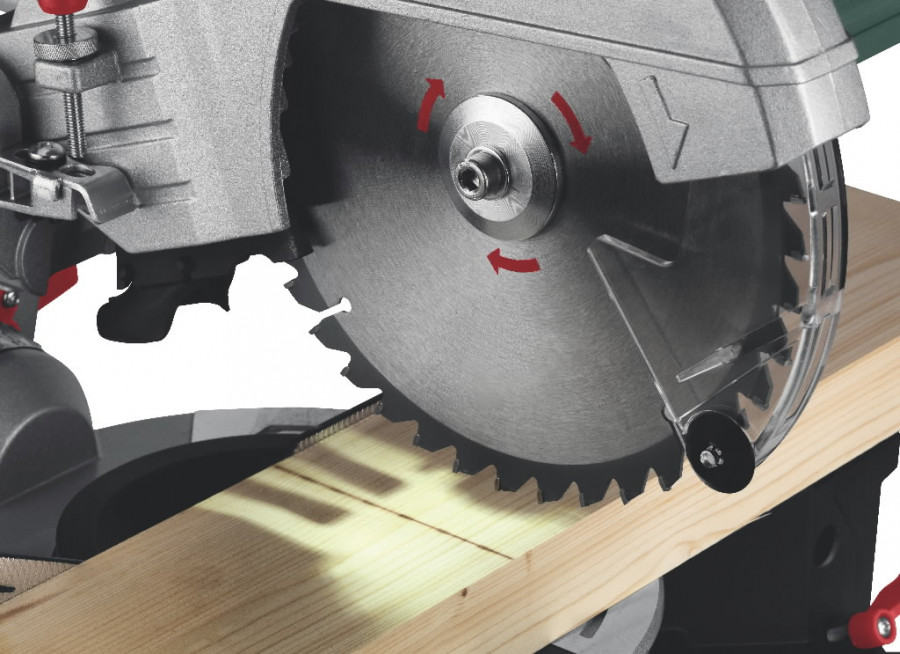

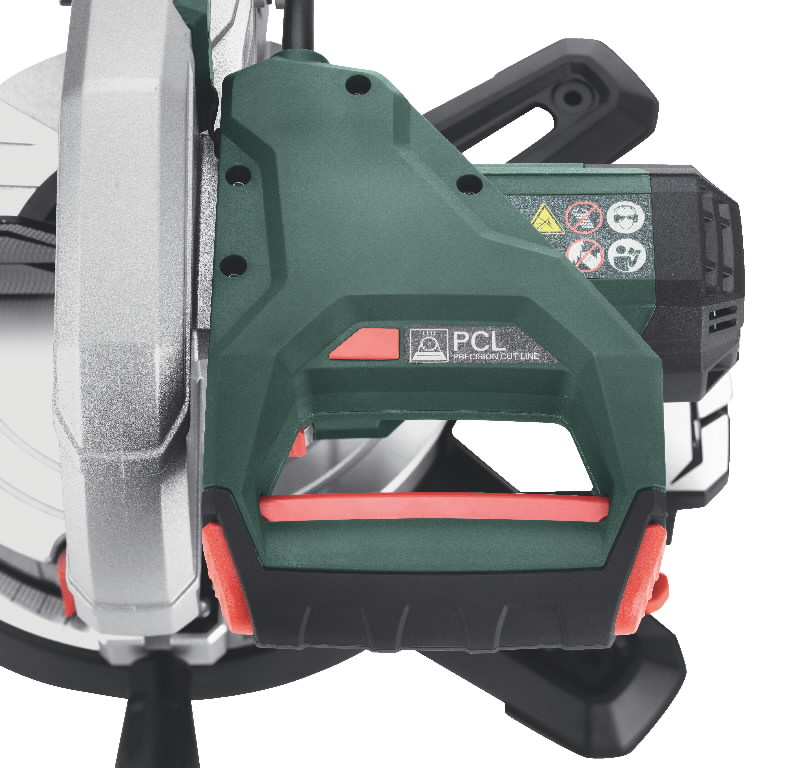

Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
Turntable with fast, precise setting of common angles using stop points
Saw blade inclination from -2 to 47°, therefore also suited for undercuts
Robust die-cast aluminium design for the highest demands

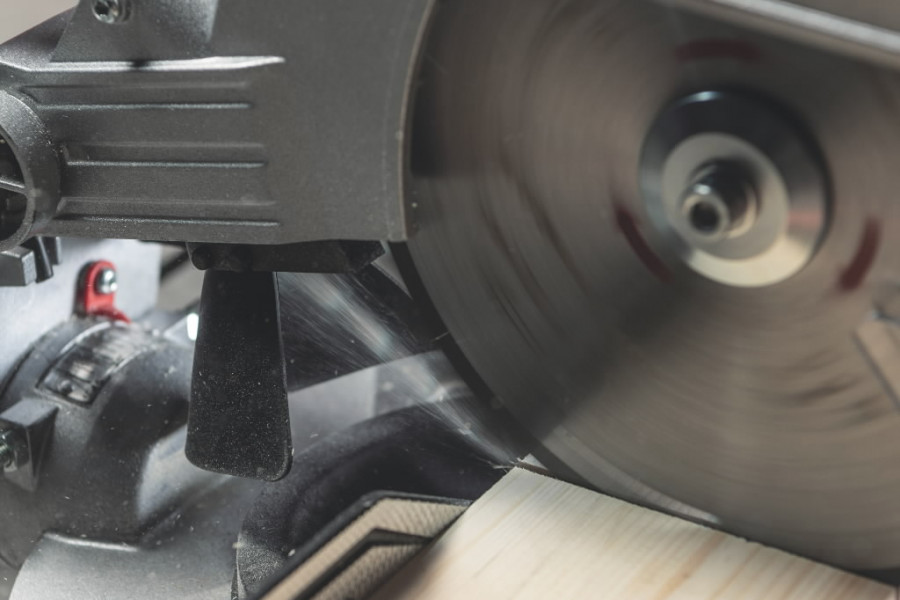

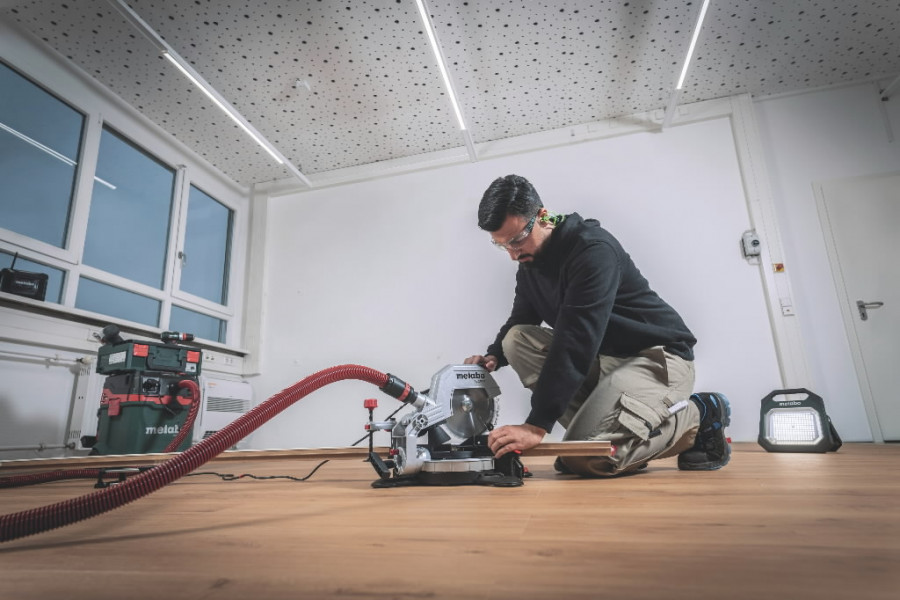

Effective dust extraction via integrated dust scoop
Extendable table width extensions, also removable to put underneath extremely long work pieces

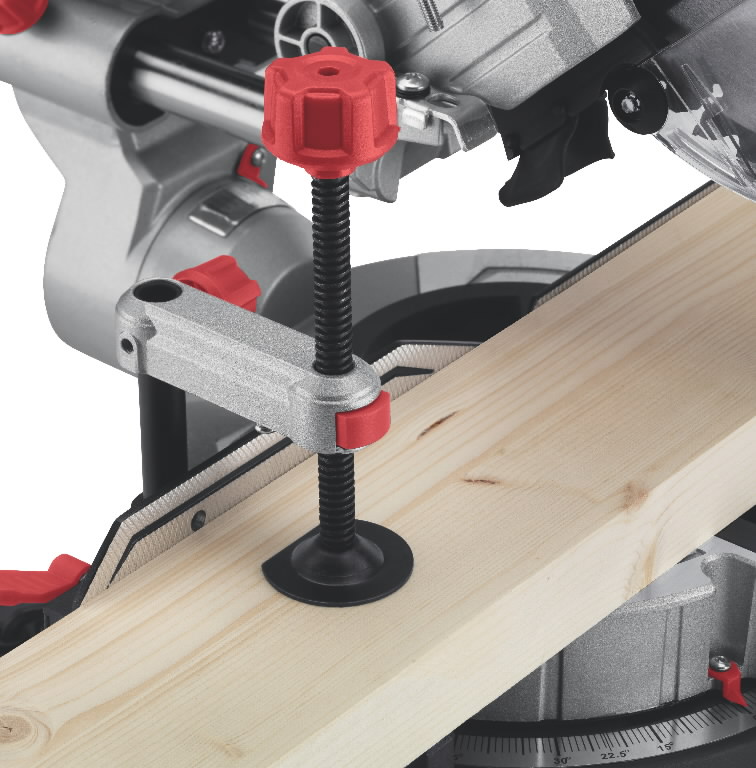

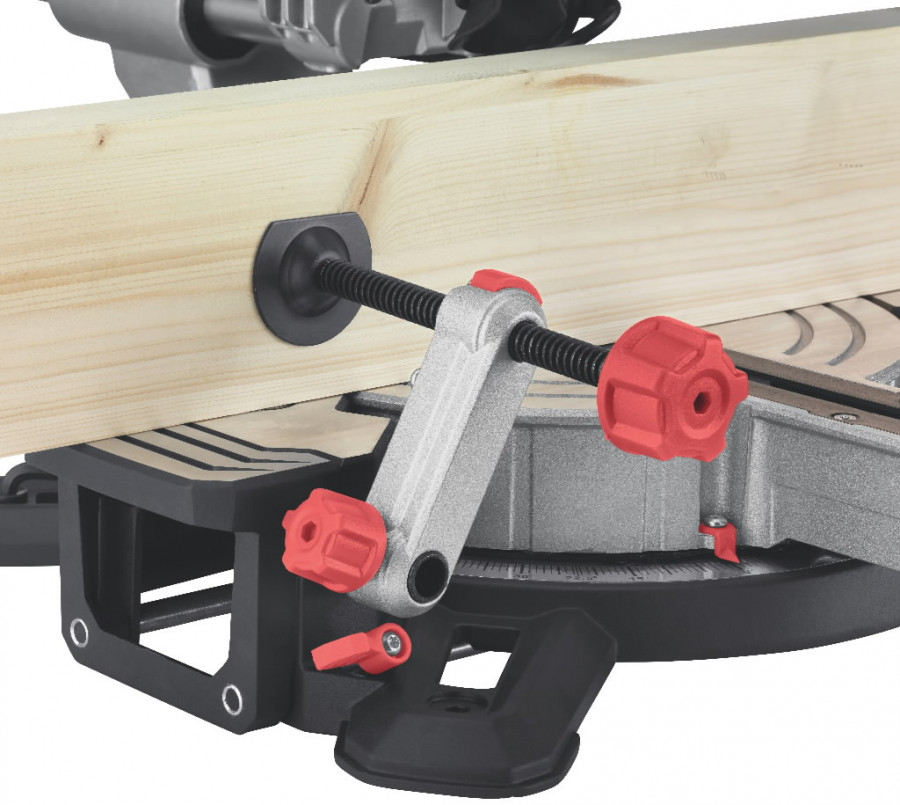

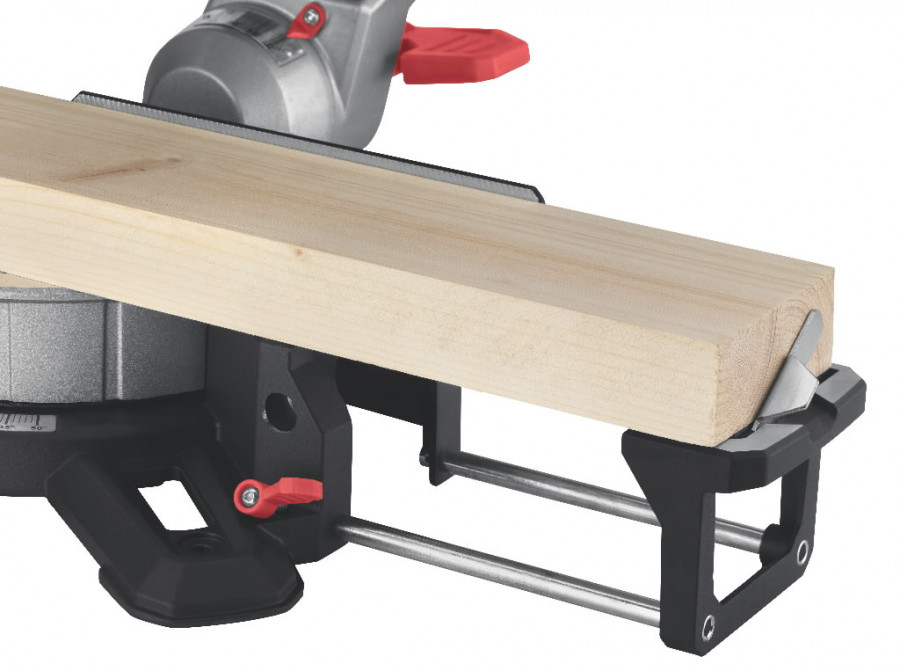

Quick-action clamp for secure fixing of the work piece from the top or front
All scales and operating elements are visible from the working position and can be operated intuitively
Ergonomic handle areas for carrying with one or two hands
Scope of delivery
Saw blade "precision cut wood - classic", 216x30, Z40, 2 Table length extensions, Length Guide, Material clamp, Tool for saw blade change, Chip Collection Bag
